Up to 16 lamps or LED strips can be controlled individually.

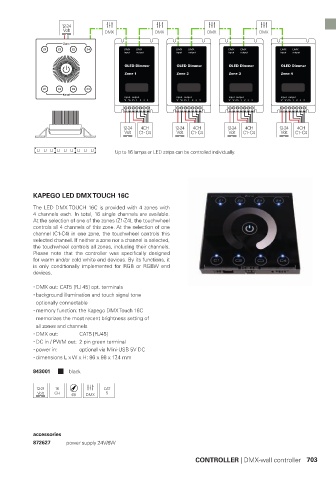

KAPEGO LED DMX TOUCH 16C
The LED DMX TOUCH 16C is provided with 4 zones with
4 channels each. In total, 16 single channels are available.
At the selection of one of the zones (Z1-Z4), the touchwheel
controls all 4 channels of this zone. At the selection of one
channel (C1-C4) in one zone, the touchwheel controls this
selected channel. If neither a zone nor a channel is selected,
the touchwheel controls all zones, including their channels.
Please note that the controller was specifically designed
for warm and/or cold white end devices. By its functions, it
is only conditionally implemented for RGB or RGBW end
devices.
DMX out: CAT5 [RJ 45] opt. terminals
background illumination and touch signal tone
optionally connectable
memory function: the Kapego DMX Touch 16C
memorizes the most recent brightness setting of
all zones and channels
DMX out: CAT5 [RJ45]
DC in / PWM out: 2 pin green terminal
power in: optional via Mini-USB 5V DC
dimensions L x W x H: 86 x 86 x 17,4 mm
843001 black
12-24 16 CAT
68 5
accessories
872627 power supply 24V/8W
