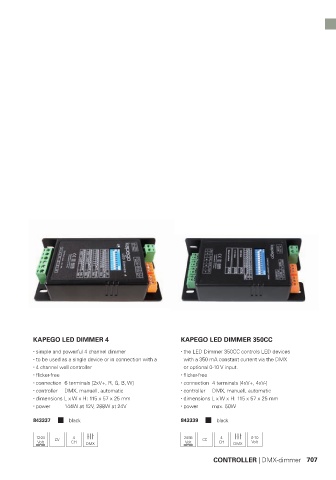

Page 708 - Deko-Light Light Impressions 2019-20
P. 708
KAPEGO LED DIMMER 4 KAPEGO LED DIMMER 350CC
simple and powerful 4 channel dimmer the LED Dimmer 350CC controls LED devices
to be used as a single device or in connection with a with a 350 mA constant current via the DMX
4 channel wall controller or optional 0-10 V input.
flicker-free flicker-free
connection 6 terminals [2xV+, R, G, B, W] connection 4 terminals [4xV+, 4xV-]
controller DMX, manuell, automatic controller DMX, manuell, automatic
dimensions L x W x H: 115 x 57 x 25 mm dimensions L x W x H: 115 x 57 x 25 mm
power 144W at 12V, 288W at 24V power max. 50W
843337 black 843339 black
12-24 CV 4 24-36 CC 4 0-10
Volt
CONTROLLER | DMX-dimmer 707
