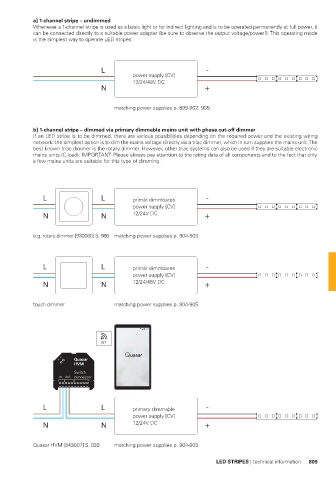

a] 1-channel stripe – undimmed
Whenever a 1-channel stripe is used as a basic light or for indirect lighting and is to be operated permanently at full power, it
can be connected directly to a suitable power adapter (be sure to observe the output voltage/power!). This operating mode
is the simplest way to operate LED stripes.

L -
power supply [CV]
12/24/48V DC
N +

matching power supplies p. 899-902, 905

b] 1-channel stripe – dimmed via primary dimmable mains unit with phase cut-off dimmer
If an LED stripe is to be dimmed, there are various possibilities depending on the required power and the existing wiring
network: the simplest option is to dim the mains voltage directly via a triac dimmer, which in turn supplies the mains unit. The
best known triac dimmer is the rotary dimmer. However, other triac systems can also be used if they are suitable electronic
mains units (C-load). IMPORTANT: Please always pay attention to the rating data of all components and to the fact that only
a few mains units are suitable for this type of dimming.

L L primär dimmbares -
power supply [CV]
N N 12/24V DC +

e.g. rotary dimmer [930060] S. 986 matching power supplies p. 904-905

L L primär dimmbares -
power supply [CV]
N N 12/24/48V DC +

touch dimmer matching power supplies p. 904-905

Quasar
HVM
Switch
in out connector

L L primary dimmable -
power supply [CV]
N N 12/24V DC +

Quasar HVM [843007] S. 939 matching power supplies p. 904-905
