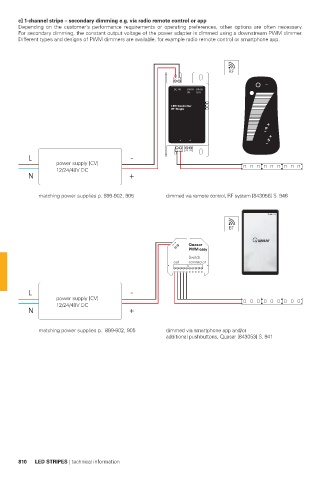

c] 1-channel stripe – secondary dimming e.g. via radio remote control or app
Depending on the customer’s performance requirements or operating preferences, other options are often necessary.
For secondary dimming, the constant output voltage of the power adapter is dimmed using a downstream PWM dimmer.
Different types and designs of PWM dimmers are available, for example radio remote control or smartphone app.
RF
-
DC IN DATA DATA
IN OUT
LED Controller
RF Single
+
P
-
+
- + - + S
-
L -
power supply [CV]
12/24/48V DC
N +
matching power supplies p. 899-902, 905 dimmed via remote control, RF system [843056] S. 946
BT
Quasar
PWM easy
Switch
out connector
L -
power supply [CV]
12/24/48V DC
N +
matching power supplies p. 899-902, 905 dimmed via smartphone app and/or
additional pushbuttons, Quasar [843053] S. 941
