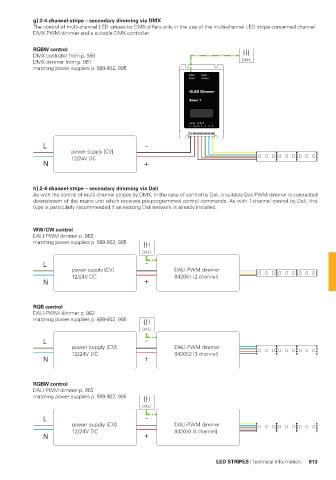

g] 2-4-channel-stripe – secondary dimming via DMX
The control of multi-channel LED stripes by DMX differs only in the use of the multi-channel LED stripe concerned channel
DMX PWM dimmer and a suitable DMX controller.

RGBW control
DMX controller from p. 950
DMX dimmer from p. 951
matching power supplies p. 899-902, 905
DMX DMX
DATA DATA
input output
OLED Dimmer
Zone 1

input output
V- V+ V+ 1 2 3 4

L -
power supply [CV]
12/24V DC
N +

h] 2-4-channel-stripe – secondary dimming via Dali
As with the control of multi-channel stripes by DMX, in the case of control by Dali, a suitable Dali PWM dimmer is connected
downstream of the mains unit which receives pre-programmed control commands. As with 1-channel control by Dali, this
type is particularly recommended if an existing Dali network is already installed.

WW/CW control
DALI-PWM dimmer p. 962
matching power supplies p. 899-902, 905
DALI
L -
power supply [CV] DALI-PWM dimmer
12/24V DC 842051 [2 channel]
N +

RGB control
DALI-PWM- dimmer p. 962
matching power supplies p. 899-902, 905
DALI
L -
power supply [CV] DALI-PWM dimmer
12/24V DC 842052 [3 channel]
N +

RGBW control
DALI-PWM dimmer p. 963
matching power supplies p. 899-902, 905
DALI
L -
power supply [CV] DALI-PWM dimmer
12/24V DC 842010 [4 channel]
N +
