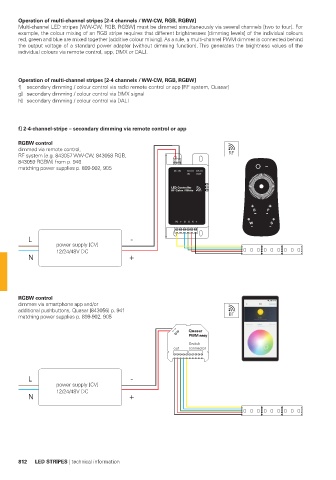

Operation of multi-channel stripes [2-4 channels / WW-CW, RGB, RGBW]
Multi-channel LED stripes [WW-CW, RGB, RGBW] must be dimmed simultaneously via several channels [two to four]. For
example, the colour mixing of an RGB stripe requires that different brightnesses [dimming levels] of the individual colours
red, green and blue are mixed together [additive colour mixing]. As a rule, a multi-channel PWM dimmer is connected behind
the output voltage of a standard power adapter [without dimming function]. This generates the brightness values of the
individual colours via remote control, app, DMX or DALI.

Operation of multi-channel stripes [2-4 channels / WW-CW, RGB, RGBW]
f] secondary dimming / colour control via radio remote control or app [RF system, Quasar]
g] secondary dimming / colour control via DMX signal
h] secondary dimming / colour control via DALI

f] 2-4-channel-stripe – secondary dimming via remote control or app

RGBW control
dimmed via remote control,
RF system [e.g. 843057 WW-CW, 843058 RGB, RF
843059 RGBW] from p. 946
matching power supplies p. 899-902, 905 -
DATA
DC IN DATA DATA
OUT
IN IN OUT
LED Controller
RF Color / White
+ +
B P
- -
+ +
W + B G R + W S
- -
L -
power supply [CV]
12/24/48V DC
N +

RGBW control
dimmes via smartphone app and/or
additional pushbuttons, Quasar [843056] p. 941
matching power supplies p. 899-902, 905 BT

Quasar
PWM easy
Switch
out connector

L -
power supply [CV]
12/24/48V DC
N +

812 LED STRIPES | technical information
