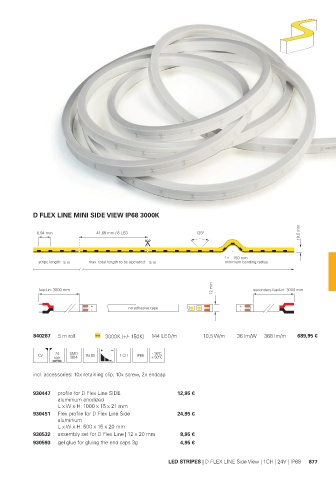

Page 879 - Deko-light Catalogue 2022
P. 879

D FLEX LINE MINI SIDE VIEW IP68 3000K


            6,94 mm            41,66 mm / 6 LED              125°                            19,5 mm



                                                                      r    150 mm
             stripe length: 5 m  max. total length to be operated:  5 m  minimum bending radius


                                                                  12 mm
             feed-in: 3000 mm                                                  secondary feed-in: 3000 mm







           840287  5 m roll       3000K [+/- 150K]  144 LED/m  10,5 W/m   36 lm/W  368 lm/m  689,95 €

                                                - 15°C
             CV   24  SMD  Ra 80      1 CH  IP68  + 50°C
                       3014
           incl. accessories: 10x retaining clip, 10x screw, 2x endcap


           930447  profile for D Flex Line SIDE         12,95 €
                   aluminium anodized
                   L x W x H: 1000 x 15 x 21 mm
           930451  Flex profile for D Flex Line Side    24,95 €
                   aluminium
                   L x W x H: 500 x 15 x 20 mm
           930532  assembly set for D Flex Line | 12 x 20 mm  8,95 €
           930593  gel glue for gluing the end caps 3g  4,95 €


                                                     LED STRIPES | D FLEX LINE Side View | 1CH | 24V | IP68  877
