Page 881 - Deko-light Catalogue 2022
P. 881

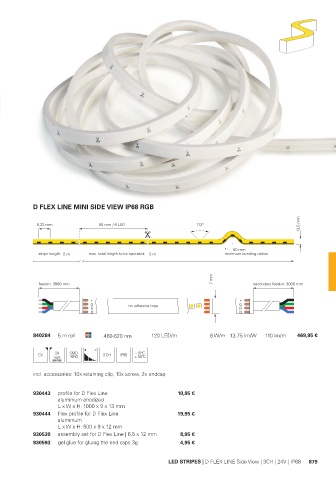

D FLEX LINE MINI SIDE VIEW IP68 RGB


            8,33 mm            50 mm / 6 LED                 112°                            13,5 mm


                                                                      r    50 mm
             stripe length: 5 m  max. total length to be operated:  5 m  minimum bending radius



                                                                  7 mm
             feed-in: 3000 mm                                                  secondary feed-in: 3000 mm








           840284  5 m roll      460-620 nm     120 LED/m        8 W/m 13,75 lm/W  110 lm/m  469,95 €

                                           - 15°C
             CV   24  SMD        3 CH  IP68  + 50°C
                      4040
           incl. accessories: 10x retaining clip, 10x screw, 2x endcap


           930443  profile for D Flex Line               10,95 €
                   aluminium anodized
                   L x W x H: 1000 x 9 x 13 mm
           930444  Flex profile for D Flex Line          19,95 €
                   aluminium
                   L x W x H: 500 x 9 x 12 mm
           930530  assembly set for D Flex Line | 6,5 x 12 mm  8,95 €
           930593  gel glue for gluing the end caps 3g  4,95 €


                                                     LED STRIPES | D FLEX LINE Side View | 3CH | 24V  | IP68  879
