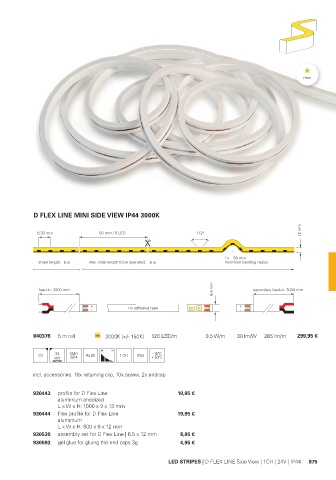

Page 877 - Deko-light Catalogue 2022
P. 877


                                                                                              new
























           D FLEX LINE MINI SIDE VIEW IP44 3000K

                                                                                             12 mm
            8,33 mm             50 mm / 6 LED                112°



                                                                      r    50 mm
             stripe length: 5 m  max. total length to be operated:  5 m  minimum bending radius


                                                                  6,5 mm
             feed-in: 3000 mm                                                  secondary feed-in: 3000 mm







           840376  5 m roll       3000K [+/- 150K]  120 LED/m   9,5 W/m   30 lm/W  285 lm/m  299,95 €

                                                - 15°C
             CV   24  SMD  Ra 90      1 CH  IP44  + 50°C
                       3014
           incl. accessories: 10x retaining clip, 10x screw, 2x endcap


           930443  profi le for D Flex Line              10,95 €
                   aluminium anodized
                   L x W x H: 1000 x 9 x 13 mm
           930444  Flex profi le for D Flex Line         19,95 €
                   aluminium
                   L x W x H: 500 x 9 x 12 mm
           930530  assembly set for D Flex Line | 6,5 x 12 mm  8,95 €
           930593  gel glue for gluing the end caps 3g  4,95 €


                                                     LED STRIPES | D FLEX LINE Side View | 1CH | 24V | IP44  875
