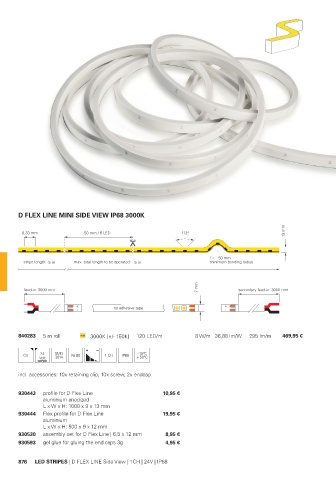

Page 878 - Deko-light Catalogue 2022

D FLEX LINE MINI SIDE VIEW IP68 3000K

13 mm
8,33 mm 50 mm / 6 LED 112°

r 50 mm
stripe length: 5 m max. total length to be operated: 5 m minimum bending radius

7 mm
feed-in: 3000 mm secondary feed-in: 3000 mm

840283 5 m roll 3000K [+/- 150K] 120 LED/m 8 W/m 36,88 lm/W 295 lm/m 469,95 €

- 15°C
CV 24 SMD Ra 80 1 CH IP68 + 50°C
3014
incl. accessories: 10x retaining clip, 10x screw, 2x endcap

930443 profile for D Flex Line 10,95 €
aluminium anodized
L x W x H: 1000 x 9 x 13 mm
930444 Flex profile for D Flex Line 19,95 €
aluminium
L x W x H: 500 x 9 x 12 mm
930530 assembly set for D Flex Line | 6,5 x 12 mm 8,95 €
930593 gel glue for gluing the end caps 3g 4,95 €

876 LED STRIPES | D FLEX LINE Side View | 1CH | 24V | IP68
