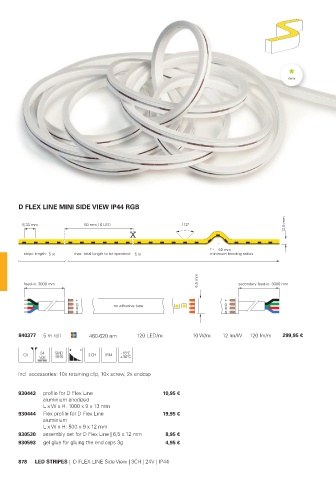

Page 880 - Deko-light Catalogue 2022


new

D FLEX LINE MINI SIDE VIEW IP44 RGB

8,33 mm 50 mm / 6 LED 112° 12,5 mm

r 50 mm
stripe length: 5 m max. total length to be operated: 5 m minimum bending radius

6,5 mm
feed-in: 3000 mm secondary feed-in: 3000 mm

840377 5 m roll 460-620 nm 120 LED/m 10 W/m 12 lm/W 120 lm/m 299,95 €

- 15°C
CV 24 SMD 3 CH IP44 + 50°C
4040
incl. accessories: 10x retaining clip, 10x screw, 2x endcap

930443 profi le for D Flex Line 10,95 €
aluminium anodized
L x W x H: 1000 x 9 x 13 mm
930444 Flex profi le for D Flex Line 19,95 €
aluminium
L x W x H: 500 x 9 x 12 mm
930530 assembly set for D Flex Line | 6,5 x 12 mm 8,95 €
930593 gel glue for gluing the end caps 3g 4,95 €

878 LED STRIPES | D FLEX LINE Side View | 3CH | 24V | IP44
