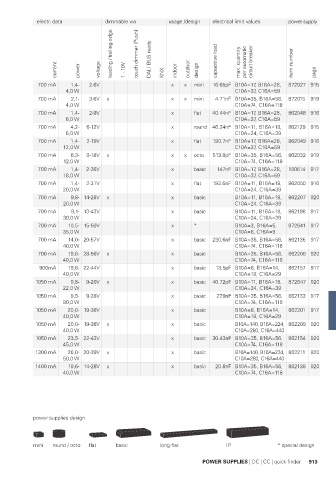

Page 915 - Deko-light Catalogue 2022

electr. data dimmable via usage /design electrical limit values power supply
leading / trailing edge touch dimmer [Push] DALI BUS ready capacitive load

current power voltage 1 - 10V KNX indoor outdoor design max. quantity per automatic circuit breaker item number page

700 mA 1,4- 2-6V x x mini 16.65pF B10A=17, B16A=28, 872027 915
4,0 W C10A=37, C16A=59
700 mA 2,1- 3-6V x x x mini 4.71nF B10A=35, B16A=56, 872015 919
4,0 W C10A=74, C16A=118
700 mA 1,4- 2-9V x flat 40.44nF B10A=17, B16A=28, 862048 916
6,0 W C10A=37, C16A=59
700 mA 4,2- 6-12V x round 46.24nF B10A=11, B16A=18, 862129 915
8,0 W C10A=24, C16A=39
700 mA 1,4- 2-19V x flat 190.7nF B10A=17, B16A=28, 862049 916
12,0 W C10A=37, C16A=59
700 mA 6,3- 9-18V x x x octo 513.8pF B10A=35, B16A=56, 862032 919
12,0 W C10A=74, C16A=118
700 mA 1,4- 2-26V x basic 147nF B10A=17, B16A=28, 180514 917
18,0 W C10A=37, C16A=59
700 mA 1,4- 2-31V x flat 192.6nF B10A=11, B16A=18, 862050 916
20,0 W C10A=24, C16A=39
700 mA 9,8- 14-28V x x basic B10A=11, B16A=18, 862207 920
20,0 W C10A=24, C16A=39
700 mA 9,1- 13-43V x basic B10A=11, B16A=18, 862198 917
30,0 W C10A=24, C16A=39
700 mA 10,5- 15-50V x * B10A=3, B16A=5, 872641 917
35,0 W C10A=6, C16A=9
700 mA 14,0- 20-57V x basic 230.6nF B10A=35, B16A=56, 862135 917
40,0 W C10A=74, C16A=118
700 mA 19,6- 28-56V x x basic B10A=35, B16A=56, 862208 920
40,0 W C10A=74, C16A=118
900mA 19,8- 22-44V x basic 13.5pF B10A=8, B16A=14, 862157 917
40,0 W C10A=18, C16A=29
1050 mA 9,8- 9-20V x x basic 40.72pF B10A=11, B16A=18, 872647 920
22,0 W C10A=24, C16A=39
1050 mA 9,5- 9-28V x basic 27.9nF B10A=35, B16A=56, 862133 917
90,0 W C10A=74, C16A=118
1050 mA 20,0- 19-38V x basic B10A=8, B16A=14, 862201 917
40,0 W C10A=18, C16A=29
1050 mA 20,0- 19-38V x x basic B10A=140, B16A=224, 862209 920
40,0 W C10A=280, C16A=440
1050 mA 23,5- 22-43V x basic 30.43nF B10A=35, B16A=56, 862154 920
45,0 W C10A=74, C16A=118
1300 mA 26,0- 20-39V x x basic B10A=140, B16A=224, 862211 920
50,0 W C10A=280, C16A=440
1400 mA 19,6- 14-28V x x basic 20.8nF B10A=35, B16A=56, 862138 920
40,0 W C10A=74, C16A=118

power supplies design

mini round / octo flat basic long-flat IP * special design

POWER SUPPLIES | DC | CC | quick finder 913
