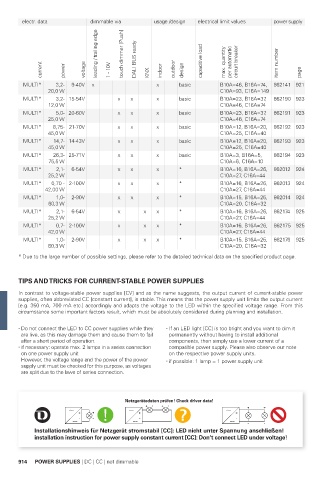

Page 916 - Deko-light Catalogue 2022
P. 916
electr. data dimmable via usage /design electrical limit values power supply
leading / trailing edge touch dimmer [Push] DALI BUS ready capacitive load
current power voltage 1 - 10V KNX indoor outdoor design max. quantity per automatic circuit breaker item number page
MULTI* 3,2- 9-40V x x basic B10A=46, B16A=74, 862141 921
20,0 W C10A=93, C16A=149
MULTI* 3,2- 15-54V x x x basic B10A=23, B16A=37, 862190 923
12,0 W C10A=46, C16A=74
MULTI* 5,0- 20-60V x x x basic B10A=23, B16A=37, 862191 923
25,0 W C10A=46, C16A=74
MULTI* 8,75- 21-70V x x x basic B10A=12, B16A=20, 862192 923
45,0 W C10A=25, C16A=40
MULTI* 14,7- 14-43V x x x basic B10A=12, B16A=20, 862193 923
45,0 W C10A=25, C16A=40
MULTI* 26,3- 25-71V x x x basic B10A=3, B16A=5, 862194 923
75,5 W C10A=6, C16A=10
MULTI* 2,1- 6-54V x x x * B10A=16, B16A=26, 862012 924
25,2 W C10A=27, C16A=44
MULTI* 0,70 - 2-100V x x x * B10A=16, B16A=26, 862013 924
42,00 W C10A=27, C16A=44
MULTI* 1,0- 2-90V x x x * B10A=15, B16A=25, 862014 924
60,3 W C10A=20, C16A=32
MULTI* 2,1- 6-54V x x x * B10A=16, B16A=26, 862174 925
25,2 W C10A=27, C16A=44
MULTI* 0,7- 2-100V x x x * B10A=16, B16A=26, 862175 925
42,0 W C10A=27, C16A=44
MULTI* 1,0- 2-90V x x x * B10A=15, B16A=25, 862176 925
60,3 W C10A=20, C16A=32
* Due to the large number of possible settings, please refer to the detailed technical data on the specified product page.
TIPS AND TRICKS FOR CURRENT-STABLE POWER SUPPLIES
In contrast to voltage-stable power supplies [CV] and as the name suggests, the output current of current-stable power
supplies, often abbreviated CC [constant current], is stable. This means that the power supply unit limits the output current
[e.g. 350 mA, 700 mA etc.] accordingly and adapts the voltage to the LED within the specified voltage range. From this
circumstance some important factors result, which must be absolutely considered during planning and installation.
Do not connect the LED to CC power supplies while they If an LED light [CC] is too bright and you want to dim it
are live, as this may damage them and cause them to fail permanently without having to install additional
after a short period of operation. components, then simply use a lower current of a
if necessary: operate max. 2 lamps in a series connection compatible power supply. Please also observe our note
on one power supply unit on the respective power supply units.
However, the voltage range and the power of the power if possible: 1 lamp = 1 power supply unit
supply unit must be checked for this purpose, as voltages
are split due to the laws of series connection.
+ - + - + +
+ + + +
- - - -
- -
914 POWER SUPPLIES | DC | CC | not dimmable
