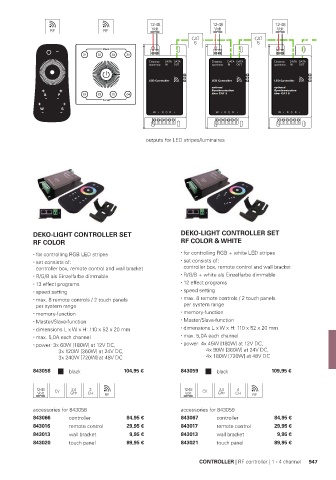

Page 949 - Deko-light Catalogue 2022
P. 949
12-48 12-48 12-48
RF RF Volt Volt Volt
- Zone
Z1 Z2 Z3 Z4
Eingangs- DATA DATA Eingangs- DATA DATA Eingangs- DATA DATA
spannung IN OUT spannung IN OUT spannung IN OUT
LED Controller LED Controller LED Controller
optional optional
+ + Synchronisation Synchronisation
B P C1 C2 C3 C4 über CAT 5 über CAT 5
- - Kanal
+ +
W S
- - W + B G R + W + B G R + W + B G R +
outputs for LED stripes/luminaires
DEKO-LIGHT CONTROLLER SET DEKO-LIGHT CONTROLLER SET
RF COLOR RF COLOR & WHITE
for controlling RGB LED stripes for controlling RGB + white LED stripes
set consists of: set consists of:
controller box, remote control and wall bracket controller box, remote control and wall bracket
R/G/B als Einzelfarbe dimmable R/G/B + white als Einzelfarbe dimmable
13 effect programs 12 effect programs
speed setting speed setting
max. 8 remote controls / 2 touch panels max. 8 remote controls / 2 touch panels
per system range per system range
memory-function memory-function
Master/Slave-function Master/Slave-function
dimensions L x W x H: 110 x 52 x 20 mm dimensions L x W x H: 110 x 52 x 20 mm
max. 5,0A each channel max. 5,0A each channel
power: 3x 60W [180W] at 12V DC, power: 4x 45W [180W] at 12V DC,
3x 120W [360W] at 24V DC, 4x 90W [360W] at 24V DC,
3x 240W [720W] at 48V DC 4x 180W [720W] at 48V DC
843058 black 104,95 € 843059 black 109,95 €
2,4
12-48 CV GHz 3 12-48 CV GHz 4
2,4
accessories for 843058 accessories for 843059
843066 controller 84,95 € 843067 controller 84,95 €
843016 remote control 29,95 € 843017 remote control 29,95 €
843013 wall bracket 9,95 € 843013 wall bracket 9,95 €
843020 touch panel 89,95 € 843021 touch panel 89,95 €
CONTROLLER | RF controller | 1 - 4 channel 947
