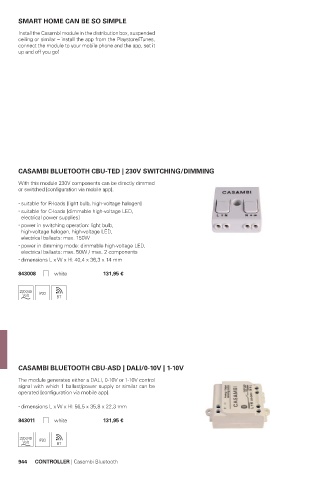

Page 946 - Deko-light Catalogue 2022
P. 946
SMART HOME CAN BE SO SIMPLE
Install the Casambi module in the distribution box, suspended
ceiling or similar – install the app from the Playstore/iTunes,
connect the module to your mobile phone and the app, set it
up and off you go!
CASAMBI BLUETOOTH CBU-TED | 230V SWITCHING/DIMMING
With this module 230V components can be directly dimmed
or switched [configuration via mobile app].
suitable for R-loads [light bulb, high-voltage halogen]
suitable for C-loads [dimmable high-voltage LED,
electrical power supplies]
power in switching operation: light bulb,
high-voltage halogen, high-voltage LED,
electrical ballasts: max. 150W
power in dimming mode: dimmable high-voltage LED,
electrical ballasts: max. 50W / max. 2 components
dimensions L x W x H: 40,4 x 36,3 x 14 mm
843008 white 131,95 €
220-240 IP20
CASAMBI BLUETOOTH CBU-ASD | DALI/0-10V | 1-10V
The module generates either a DALI, 0-10V or 1-10V control
signal with which 1 ballast/power supply or similar can be
operated [configuration via mobile app].
dimensions L x W x H: 56,5 x 35,8 x 22,3 mm
843011 white 131,95 €
220-240 IP20
944 CONTROLLER | Casambi Bluetooth
