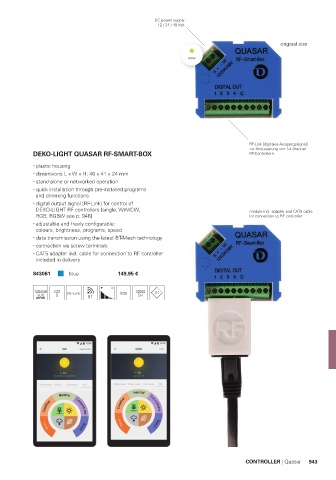

Page 945 - Deko-light Catalogue 2022
P. 945
DC power supply
12 / 24 / 48 Volt
original size
new
RF-Link [digitales Ausgangssignal]
zur Ansteuerung von 1-4 channel
DEKO-LIGHT QUASAR RF-SMART-BOX RF-Controllern
plastic housing
dimensions L x W x H: 46 x 41 x 24 mm
stand-alone or networked operation
quick installation through pre-installed programs
and dimming functions
digital output signal [RF-Link] for control of
DEKO-LIGHT RF controllers [single, WW/CW, module incl. adapter and CAT5 cable
RGB, RGBW see p. 946] for connection to RF controller
adjustable and freely configurable:
colours, brightness, programs, speed
data transmission using the latest BT-Mesh technology
connection via screw terminals
CAT5 adapter incl. cable for connection to RF controller
included in delivery
843061 blue 149,95 €
12/24/48 CAT RF-Link IP20 1/2/3/4
5 CH
CONTROLLER | Quasar 943
