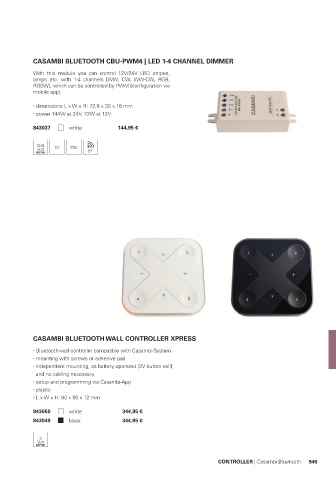

CASAMBI BLUETOOTH CBU-PWM4 | LED 1-4 CHANNEL DIMMER
           With this module you can control 12V/24V LED stripes,
           lamps etc. with 1-4 channels [WW, CW,  WW-CW, RGB,
           RGBW], which can be controlled by PWM [configuration via
           mobile app].

              ‚ dimensions L x W x H: 72,6 x 30 x 18 mm
              ‚ power 144W at 24V, 72W at 12V

           843037     white          144,95 €


            12-24  CV  IP20


































           CASAMBI BLUETOOTH WALL CONTROLLER XPRESS

              ‚ Bluetooth-wall controller compatible with Casambi-System
              ‚ mounting with screws or adhesive pad
              ‚ independent mounting, as battery operated [3V button cell]
             and no cabling necessary
              ‚ setup and programming via Casambi-App
              ‚ plastic
              ‚ L x W x H: 90 x 90 x 12 mm
           843050     white            344,95 €
           843049     black            344,95 €


             3


                                                                    CONTROLLER | Casambi Bluetooth   945
