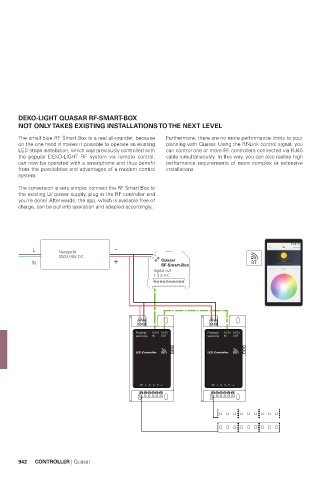

DEKO-LIGHT QUASAR RF-SMART-BOX
NOT ONLY TAKES EXISTING INSTALLATIONS TO THE NEXT LEVEL
The small blue RF Smart Box is a real all-rounder, because Furthermore, there are no more performance limits to your
on the one hand it makes it possible to operate an existing planning with Quasar. Using the RF-Link control signal, you
LED stripe installation, which was previously controlled with can control one or more RF controllers connected via RJ45
the popular DEKO-LIGHT RF system via remote control, cable simultaneously. In this way, you can also realise high
can now be operated with a smartphone and thus benefit performance requirements of more complex or extensive
from the possibilities and advantages of a modern control installations.
system.
The conversion is very simple: connect the RF Smart Box to
the existing LV power supply, plug in the RF controller and
you're done! Afterwards, the app, which is available free of
charge, can be put into operation and adapted accordingly.
L Netzgerät -
12/24/48V DC
N + Quasar BT
RF-Smart-Box
digital out
1 2 3 4 C
Eingangs- DATA DATA Eingangs- DATA DATA
spannung IN OUT spannung IN OUT
LED Controller LED Controller
W + B G R + W + B G R +
