Chapter 8 Rainwater systems
PVCu gutter fittings and jointing method

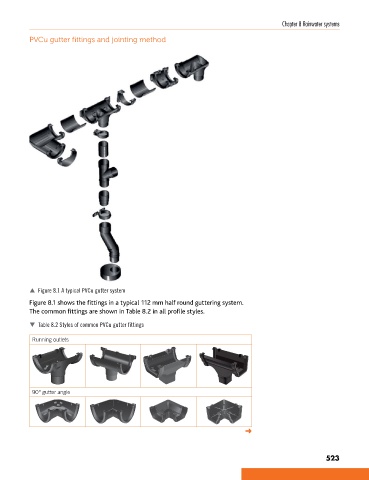

p Figure 8.1 A typical PVCu gutter system
Figure 8.1 shows the fittings in a typical 112 mm half round guttering system.
The common fittings are shown in Table 8.2 in all profile styles.
Table 8.2 Styles of common PVCu gutter fittings
Running outlets
90° gutter angle
➜
