P. 424
390 Applied Process Design for Chemical and Petrochemical Plants
POSITION 1 POSITION 2 POSITION 3 POSITION 4

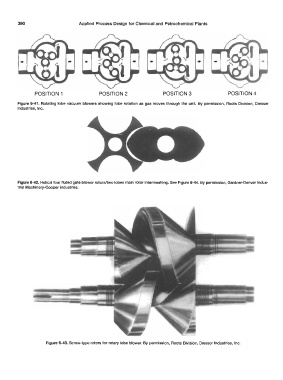

Figure 6-41. Rotating lobe vacuum blowers showing lobe rotation as gas moves through the unit. By permission, Roots Division, Dresser
Industries, Inc.
Figure 6-42. Helical four fluted gate blower rotors/two lobes main rotor intermeshing. See Figure 6-44. By permission, Gardner-Denver Indus-
trial Machinery-Cooper Industries.
Figure 6-43. Screw-type rotors for rotary lobe blower. By permission, Roots Division, Dresser Industries, Inc.
