6.0 POLYMER PROCESSING

.3.3 PROCESS SEQUENCE

1. Blow molding a shape is a common industrial process.
2. The example shown below is of the production of a plastic bottle (Figure 6.8).

3. The plastics normally used in this process are; polythene, PVC and polypropylene.

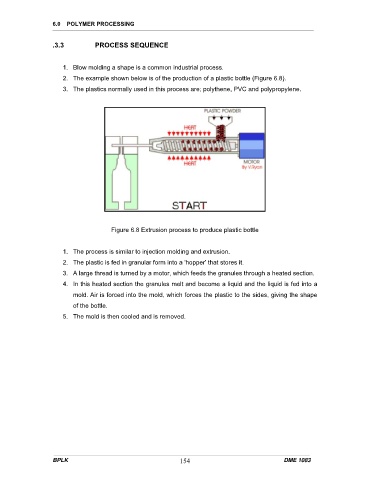

Figure 6.8 Extrusion process to produce plastic bottle

1. The process is similar to injection molding and extrusion.
2. The plastic is fed in granular form into a 'hopper' that stores it.

3. A large thread is turned by a motor, which feeds the granules through a heated section.
4. In this heated section the granules melt and become a liquid and the liquid is fed into a
mold. Air is forced into the mold, which forces the plastic to the sides, giving the shape
of the bottle.
5. The mold is then cooled and is removed.
