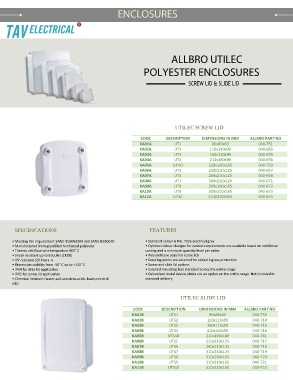

Page 19 - TAV CATELOGUE RGB

ENCLOSURES

³

ALLBRO UTILEC

POLYESTER ENCLOSURES

SCREW LID & SLIDE LID

UTILEC SCREW LID

CODE DESCRIPTION DIMENSIONS IN MM ALLBRO PART NO
KA01A UT1 80x80x60 040-751
KA02A UT2 110x110x90 040-655
KA03A UT3 160x110x90 040-670
KA04A UT4 210x160x90 040-656
KA05A UT4D 210x160x180 040-753
KA06A UT5 210x210x125 040-657
KA07A UT6 260x210x125 040-658
KA08A UT7 310x210x125 040-671
KA09A UT8 310x260x165 040-672
KA10A UT9 310x310x165 040-673
KA11A UT10 410X410X165 040-674

SPECIFICATIONS FEATURES

• Meeting the requirement SANS IEC6062208 and SANS IEC60670 • Standard colour is RAL 7035 electrical grey
• Manufactured from glassfilled reinforced polyester • Optional colour changes for various requirements are available based on additional
• Thermo set Glow wire temprature 960° C costing and a minimum quantity level per order
• Shock resistant up to 8 Joules (1K08) • Polyurethane seals for screw lids
• UV resistant (20 Years +) • Securing points are external for added ingress protection
• Dimension stability from -50° C up to +150° C • Screw and slide lid options
• IP54 for slide lid application • External mounting feet standard across the entire range
• IP65 for screw lid application • Galvanised metal device plates are an option on the entire range. Not included in
• Chemical resistant (water,salt,solutions,acids, bases,mineral standard delivery.
oils)

UTILEC SLIDE LID

CODE DESCRIPTION DIMENSIONS IN MM ALLBRO PART NO
KA01B UTS1 80x80x60 040-752
KA02B UTS2 110x110x90 040-714
KA03B UTS3 160x110x90 040-715
KA04B UTS4 210x160x90 040-716
KA05B UTS4D 210x160x180 040-761
KA06B UTS5 210x210x125 040-717
KA07B UTS6 260x210x125 040-718
KA08B UTS7 310x210x125 040-719
KA09B UTS8 310x260x165 040-720
KA10B UTS9 310x310x165 040-721
KA11B UTS10 410x410x165 040-722
