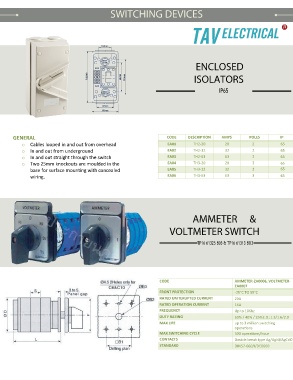

SWITCHING DEVICES

³

ENCLOSED

ISOLATORS

IP65

GENERAL CODE DESCRIPTION AMPS POLES IP
o Cables looped in and out from overhead EA01 TH2-20 20 2 65
o In and out from underground EA02 TH2-32 32 2 65
o In and out straight through the switch EA03 TH2-63 63 2 65
o Two 25mm knockouts are moulded in the EA04 TH3-20 20 3 65
base for surface mounting with concealed EA05 TH3-32 32 3 65
wiring. EA06 TH3-63 63 3 65

AMMETER &

VOLTMETER SWITCH

TP16 61325 B03 & TP16 61313 BO3

CODE AMMETER-ZA0006, VOLTMETER-
ZA0007
FRONT PROTECTION -25°C TO 55°C
RATED UNITERUPTED CURRENT 20A
RATED OPERATION CURRENT 16A
FREQUENCY Up to 10Khz
DUTY RATING 60% / 40% / 25%E.D.:1.3/1.6/2.0
MAX LIFE up to 3 million switching
operations
MAX SWITCHING CYCLE 300 operations/hour
CONTACTS Double break type Ag/AgNi/AgCdO
STANDARD DIN57-660/I/DE0660
