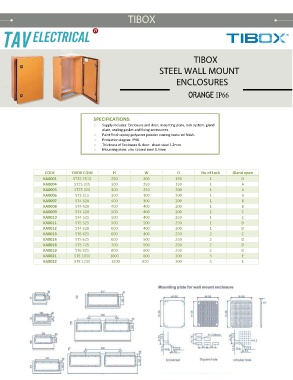

Page 21 - TAV CATELOGUE RGB

TIBOX

³

TIBOX

STEEL WALL MOUNT

ENCLOSURES

ORANGE IP66

SPECIFICATIONS:
o Supply includes: Enclosure and door, mounting plate, lock system, gland
plate, sealing gasket and fixing accessories.
o Paint finish epoxy polyester powder coating textured finish.
o Protection degree: IP66
o Thickness of Enclosure & door: sheet steel 1.2mm
o Mounting plate: zinc coated steel 1.5mm

CODE TIBOX CODE H W D No of Lock Gland open
KA0001 ST25 2515 250 200 150 1 O
KA0004 ST25 315 300 250 150 1 A
KA0005 ST25 320 300 250 200 1 A
KA0006 ST3 315 300 300 200 1 B
KA0007 ST4 320 400 300 200 1 B
KA0008 ST4 420 400 400 200 1 B
KA0009 ST4 520 500 400 200 1 C
KA0010 ST4 525 500 400 250 1 C
KA0011 ST5 525 500 500 250 1 D
KA0012 ST4 620 600 400 200 1 D
KA0013 ST6 425 600 400 250 2 C
KA0014 ST5 625 600 500 250 2 D
KA0016 ST5 725 700 500 250 2 D
KA0019 ST6 825 800 600 250 2 D
KA0021 ST8 1030 1000 800 300 3 E
KA0022 ST8 1230 1200 800 300 3 E
