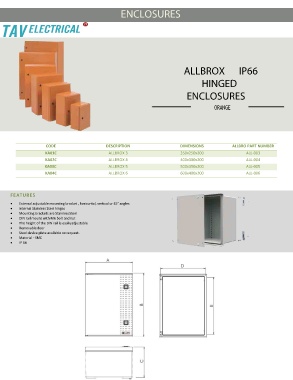

Page 20 - TAV CATELOGUE RGB

ENCLOSURES

³

ALLBROX IP66

HINGED

ENCLOSURES

ORANGE

CODE DESCRIPTION DIMENSIONS ALLBRO PART NUMBER
KA01C ALLBROX 3 350x250x200 ALL-003
KA02C ALLBROX 4 400x300x200 ALL-004

KA03C ALLBROX 5 500x350x200 ALL-005
KA04C ALLBROX 6 600x400x200 ALL-006

FEATUR ES
• External adjustable mounting bracket , horizontal, vertical or 45° angles
• Internal Stainless Steel hinges
• Mounting brackets are Stainless Steel
• DIN rail mount with M6 bolt and nut
• The height of the DIN rail is easily adjustable
• Removable door
• Steel device plate available on request.
• Material - SMC
• IP 66
