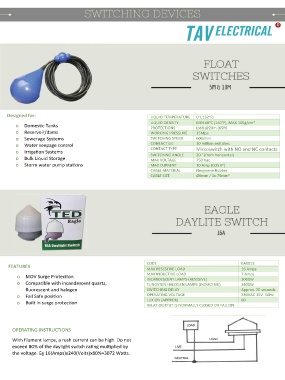

Page 23 - TAV CATELOGUE RGB

³

Designed for: LIQUID TEMPERATURE 0°C (32°F)
LIQUID DENSITY MIN 60°C (140°F), MAX 105g/cm³
o Domestic Tanks PROTECTIONS Ip68 @20m (65ft)
o Reservoir/dams WORKING PRESSURE 35Mpa
o Sewerage Systems SWITCHING SPEED 600/min
o Water seepage control CONTACT LIE 10 million switches
CONTACT TYPE
o Irrigation Systems SWITCHING ANGLE Mircoswitch with NO and NC contacts
20 ° (from horizontal)
o Bulk Liquid Storage MAX VOLTAGE 750 Vac
o Storm water pump stations MAX CURRENT 10 Amp (COS 0°)
CABLE MATERIAL Neoprene Rubber
CABLE SIZE Ø6mm / 3x.75mm²

CODE EA0012
FEATURES MAX RESESTIVE LOAD 16 Amps
o MOV Surge Protection MAX INDUCTIVE LOAD 7 Amps
INCANDESCENT LAMPS (RESESIVE)
3000W
o Compatible with incandescent quartz, TUNGSTEN HALOGEN LAMPS (INDUCTIVE) 2400W
fluorescent and halogen SWITCHING DELAY Approx. 20 seconds
o Fail Safe position OPERATING VOLTAGE 230VAC 15V. 50Hz
o Built in surge protection LUX ON (APPROX) 60
RELAY OUTPUT IS NORMALLY CLOSED OR FAIL ON

OPERATING INSTRUCTIONS

With filament lamps, a rush current can be high. Do not
exceed 80% of the daylight switch rating multiplied by
the voltage. Eg 16(Amps)x240(Volts)x80%=3072 Watts.
