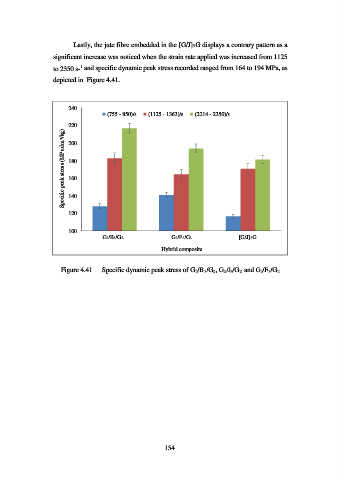

Lastly, the jute fibre embedded in the [G/J]3G displays a contrary pattern as a

significant increase was noticed when the strain rate applied was increased from 1125
1
to 2350 s- and specific dynamic peak stress recorded ranged from 164 to 194 MPa, as
depicted in Figure 4.41.

240
(755 - 850)/s (1125 - 1363)/s (2214 - 2350)/s

220
Specific peak stress (MPa.dm 3 /kg) 180

200

160

140

120

100
S1 2 G2/F3/G2 [G/J]3G
G2/B3/G S3 S5
Hybrid composite

Figure 4.41 Specific dynamic peak stress of G2/B3/G2, G2/J3/G2 and G2/F3/G2

154
