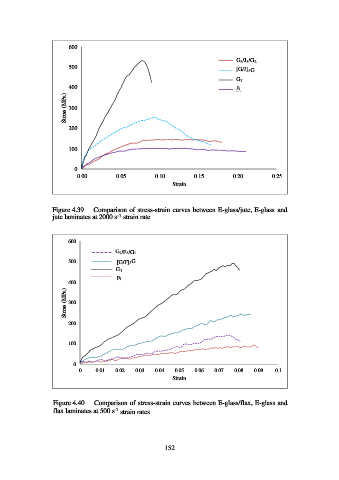

Figure 4.39 Comparison of stress-strain curves between E-glass/jute, E-glass and
-1
jute laminates at 2000 s strain rate
600
G2/F3/G2
500 [G/F]3G
G7
F7
400
Stress (MPa) 300
200
100
0
0 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.1
Strain
Figure 4.40 Comparison of stress-strain curves between E-glass/flax, E-glass and
-1
flax laminates at 500 s strain rates
