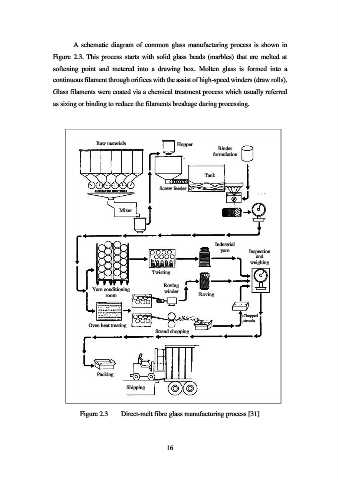

A schematic diagram of common glass manufacturing process is shown in
Figure 2.3. This process starts with solid glass beads (marbles) that are melted at
softening point and metered into a drawing box. Molten glass is formed into a
continuous filament through orifices with the assist of high-speed winders (draw rolls).
Glass filaments were coated via a chemical treatment process which usually referred
as sizing or binding to reduce the filaments breakage during processing.
Raw materials Hopper
Binder
formulation
Tank
Screw feeder
Mixer
Industrial
yarn Inspection
and
weighing
Twisting
Roving
Yarn conditioning winder
room Roving
Chopped
strands
Oven heat treating
Strand chopping
Packing
Shipping
Figure 2.3 Direct-melt fibre glass manufacturing process [31]
16
