Stress (MPa)
Strain

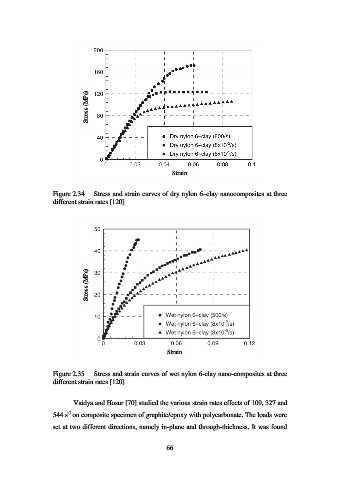

Figure 2.34 Stress and strain curves of dry nylon 6–clay nanocomposites at three
different strain rates [120]
Stress (MPa)
Strain
Figure 2.35 Stress and strain curves of wet nylon 6-clay nano-composites at three
different strain rates [120]
Vaidya and Hosur [70] studied the various strain rates effects of 109, 327 and
-1
544 s on composite specimen of graphite/epoxy with polycarbonate. The loads were
set at two different directions, namely in-plane and through-thickness. It was found
66
