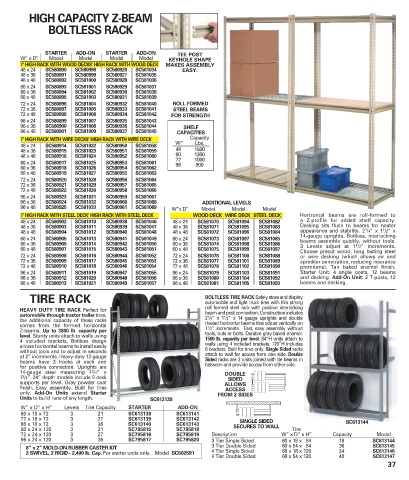

Page 37 - 2021-87 PMGSGLBL Material_Handling_Catalog_AP_V PMGS_Neat

HIGH CAPACITY Z-BEAM
BOLTLESS RACK

STARTER ADD-ON STARTER ADD-ON TEE POST
W” x D” Model Model Model Model KEYHOLE SHAPE
7’ HIGH RACK WITH WOOD DECK 8’ HIGH RACK WITH WOOD DECK MAKES ASSEMBLY
48 x 24 SC580890 SC580998 SC580926 SC581034 EASY.
48 x 36 SC580891 SC580999 SC580927 SC581035
48 x 48 SC580892 SC581000 SC580928 SC581036
60 x 24 SC580893 SC581001 SC580929 SC581037
60 x 36 SC580894 SC581002 SC580930 SC581038
60 x 48 SC580895 SC581003 SC580931 SC581039
72 x 24 SC580896 SC581004 SC580932 SC581040 ROLL FORMED
72 x 36 SC580897 SC581005 SC580933 SC581041 STEEL BEAMS
72 x 48 SC580898 SC581006 SC580934 SC581042 FOR STRENGTH
96 x 24 SC580899 SC581007 SC580935 SC581043
96 x 36 SC580900 SC581008 SC580936 SC581044 SHELF
96 x 48 SC580901 SC581009 SC580937 SC581045 CAPACITIES
7’ HIGH RACK WITH WIRE DECK 8’ HIGH RACK WITH WIRE DECK Capacity
48 x 24 SC580914 SC581022 SC580950 SC581058 W” Lbs.
48 x 36 SC580915 SC581023 SC580951 SC581059 48 1500
48 x 48 SC580916 SC581024 SC580952 SC581060 60 1300
60 x 24 SC580917 SC581025 SC580953 SC581061 72 1000
96
800
60 x 36 SC580918 SC581026 SC580954 SC581062
60 x 48 SC580919 SC581027 SC580955 SC581063
72 x 24 SC580920 SC581028 SC580956 SC581064
72 x 36 SC580921 SC581029 SC580957 SC581065
72 x 48 SC580922 SC581030 SC580958 SC581066
96 x 24 SC580923 SC581031 SC580959 SC581067
96 x 36 SC580924 SC581032 SC580960 SC581068 ADDITIONAL LEVELS
96 x 48 SC580925 SC581033 SC580961 SC581069 W”x D” Model Model Model
’
7’ HIGH RACK WITH STEEL DECK HIGH RACK WITH STEEL DECK WOOD DECK WIRE DECK STEEL DECK Horizontal beams are roll-formed to
48 x 24 SC580902 SC581010 SC580938 SC581046 48 x 24 SC581070 SC581094 SC581082 a Z-profile for added shelf capacity.
48 x 36 SC580903 SC581011 SC580939 SC581047 48 x 36 SC581071 SC581095 SC581083 Decking sits flush to beams for neater
48 x 48 SC580904 SC581012 SC580940 SC581048 48 x 48 SC581072 SC581096 SC581084 appearance and stability. 2 1 /4” x 1 1 /2” x
60 x 24 SC580905 SC581013 SC580941 SC581049 60 x 24 SC581073 SC581097 SC581085 14-gauge uprights. Boltless, interlocking
60 x 36 SC580906 SC581014 SC580942 SC581050 60 x 36 SC581074 SC581098 SC581086 beams assemble quickly, without tools.
60 x 48 SC580907 SC581015 SC580943 SC581051 60 x 48 SC581075 SC581099 SC581087 3 Levels adjust at 1 1 /2” increments.
Choose precut wood, long lasting steel
72 x 24 SC580908 SC581016 SC580944 SC581052 72 x 24 SC581076 SC581100 SC581088 or wire decking (which allows air and
72 x 36 SC580909 SC581017 SC580945 SC581053 72 x 36 SC581077 SC581101 SC581089 sprinkler penetration, reducing insurance
72 x 48 SC580910 SC581018 SC580946 SC581054 72 x 48 SC581078 SC581102 SC581090 premiums). Tan baked enamel finish.
96 x 24 SC580911 SC581019 SC580947 SC581055 96 x 24 SC581079 SC581103 SC581091 Starter Unit: 4 angle posts, 12 beams
96 x 36 SC580912 SC581020 SC580948 SC581056 96 x 36 SC581080 SC581104 SC581092 and decking. Add-On Unit: 2 T-posts, 12
96 x 48 SC580913 SC581021 SC580949 SC581057 96 x 48 SC581081 SC581105 SC581093 beams and decking.
TIRE RACK BOLTLESS TIRE RACK Safely store and display
automobile and light truck tires with this strong
HEAVY DUTY TIRE RACK Perfect for roll formed steel rack with positive interlocking
automobile through tractor trailer tires, beam and post connection. Construction includes
the additional capacity of these racks 2 1 /4” x 1 1 /2” x 14 gauge uprights and double
comes from the formed horizontal riveted horizontal beams that adjust vertically on
Z-beams. Up to 3800 lb. capacity per 1 1 /2” increments. Fast, easy assembly without
level. Sturdy units attach to walls using tools, nuts or bolts. Durable gray baked enamel.
4 included brackets. Boltless design 1500 lb. capacity per level. 84”H units attach to
allows horizontal beams to install easily walls using 4 included brackets. 120”H includes
without tools and to adjust in seconds 6 brackets. Built for tires only. Single Sided racks
at 2” increments. Heavy-duty 12-gauge attach to wall for access from one side. Double
beams have 3 hooks at each end Sided racks are 2 units joined with tie beams in
for positive connection. Uprights are between and provide access from either side.
14-gauge steel measuring 1 3 /4” x DOUBLE
1 3 /4”. 24” depth models include 5 deck SIDED
supports per level. Gray powder coat ALLOWS
finish. Easy assembly. Built for tires ACCESS
only. Add-On Units extend Starter FROM 2 SIDES
Units to build runs of any length. SC613139
W” x D” x H” Levels Tire Capacity STARTER ADD-ON
60 x 18 x 72 3 21 SC613138 SC613141
72 x 18 x 72 3 27 SC613139 SC613142 SINGLE SIDED
96 x 18 x 72 3 36 SC613140 SC613143 SECURES TO WALL SC613144
60 x 24 x 120 3 21 SC795815 SC795818 Tire
72 x 24 x 120 3 27 SC795816 SC795819 Description W” x D” x H” Capacity Model
96 x 24 x 120 3 36 SC795817 SC795820 3 Tier Single Sided 60 x 18 x 84 18 SC613144
8” x 2” MOLD-ON RUBBER CASTER KIT 3 Tier Double Sided 60 x 54 x 84 36 SC613145
2 SWIVEL, 2 RIGID - 2,400 lb. Cap. For starter units only. Model SC502591 4 Tier Single Sided 60 x 18 x 120 24 SC613146
4 Tier Double Sided 60 x 54 x 120 48 SC613147
37
