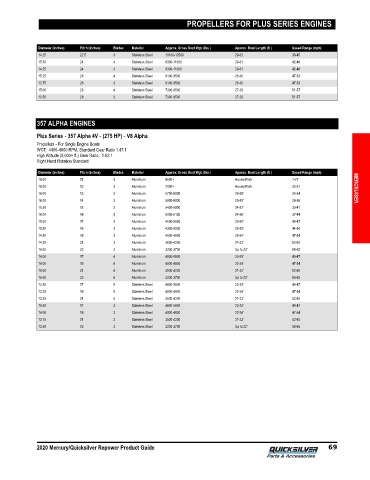

Page 86 - Repower Reference Guide (2020) 8M0149179

PROPELLERS FOR PLUS SERIES ENGINES

Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
14.25 22.5 3 Stainless Steel 10100-12500 29-32 38-45
15.50 24 4 Stainless Steel 9300-11000 29-31 42-48
14.25 24 3 Stainless Steel 9300-11000 29-31 42-48
15.25 26 4 Stainless Steel 8100-9500 28-30 47-53
13.75 26 3 Stainless Steel 8100-9500 28-30 47-53
15.00 28 4 Stainless Steel 7300-8500 27-29 51-57
13.50 28 3 Stainless Steel 7300-8500 27-29 51-57

357 ALPHA ENGINES
Plus Series ‑ 357 Alpha 4V ‑ (275 HP) ‑ V8 Alpha
Propellers ‑ For Single Engine Boats
WOT: 4400‑4800 RPM, Standard Gear Ratio 1.47:1
High Altitude (5,000+ ft.) Gear Ratio: 1.62:1
Right Hand Rotation Standard
Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
16.00 11 3 Aluminum 8500+ House/Work 1-27
16.00 12 3 Aluminum 7000+ House/Work 22-31 MERCRUISER
16.00 13 3 Aluminum 6700-9000 26-29' 26-34
16.00 14 3 Aluminum 5900-8000 25-28' 29-38
15.50 15 3 Aluminum 5400-6900 24-27' 33-41
16.00 16 3 Aluminum 5000-6100 24-26' 37-44
15.00 17 3 Aluminum 4600-5600 23-25' 40-47
15.50 18 3 Aluminum 4300-5000 22-25' 44-50
14.50 19 3 Aluminum 4000-4600 22-24' 47-54
14.25 21 3 Aluminum 3500-4200 21-23' 52-60
14.00 23 3 Aluminum 3200-3700 Up to 22' 58-65
14.00 17 4 Aluminum 4600-5600 23-25' 40-47
14.00 19 4 Aluminum 4000-4600 22-24' 47-54
14.00 21 4 Aluminum 3500-4200 21-23' 52-60
14.00 23 4 Aluminum 3200-3700 Up to 22' 58-65
13.50 17 5 Stainless Steel 4600-5600 23-25' 40-47
13.25 19 5 Stainless Steel 4000-4600 22-24' 47-54
13.25 21 5 Stainless Steel 3500-4200 21-23' 52-60
14.50 17 3 Stainless Steel 4600-5600 23-25' 40-47
14.00 19 3 Stainless Steel 4000-4600 22-24' 47-54
13.75 21 3 Stainless Steel 3500-4200 21-23' 52-60
13.50 23 3 Stainless Steel 3200-3700 Up to 22' 58-65

2020 Mercury/Quicksilver Repower Product Guide 69
