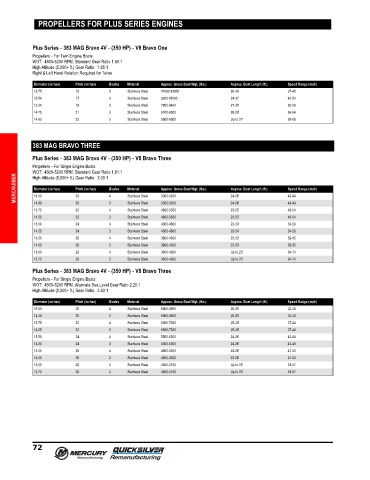

Page 89 - Repower Reference Guide (2020) 8M0149179

PROPELLERS FOR PLUS SERIES ENGINES

Plus Series ‑ 383 MAG Bravo 4V ‑ (350 HP) ‑ V8 Bravo One
Propellers ‑ For Twin Engine Boats
WOT: 4800‑5200 RPM, Standard Gear Ratio 1.50:1
High Altitude (5,000+ ft.) Gear Ratio: 1.65:1
Right & Left Hand Rotation Required for Twins

Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
15.75 15 3 Stainless Steel 11000-13900 30-33' 37-45
15.50 17 3 Stainless Steel 9200-11200 29-31' 43-52
15.25 19 3 Stainless Steel 7800-9400 27-30' 50-58
14.75 21 3 Stainless Steel 6700-8000 26-28' 56-64
14.63 23 3 Stainless Steel 5900-6900 Up to 27' 62-69

383 MAG BRAVO THREE

Plus Series ‑ 383 MAG Bravo 4V ‑ (350 HP) ‑ V8 Bravo Three
Propellers ‑ For Single Engine Boats
WOT: 4800‑5200 RPM, Standard Gear Ratio 1.81:1
MERCRUISER Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
High Altitude (5,000+ ft.) Gear Ratio: 2.00:1

Stainless Steel
4
20
5300-6200
16.00
43-49
24-26'
14.38
23-25'
48-54
22
15.75 20 3 4 Stainless Steel 5300-6200 24-26' 43-49
4800-5500
Stainless Steel
14.25 22 3 Stainless Steel 4800-5500 23-25' 48-54
15.50 24 4 Stainless Steel 4300-4800 22-24' 54-59
14.25 24 3 Stainless Steel 4300-4800 22-24' 54-59
15.25 26 4 Stainless Steel 3800-4300 22-23' 59-65
14.00 26 3 Stainless Steel 3800-4300 22-23' 59-65
15.00 28 4 Stainless Steel 3600-4000 Up to 23' 64-70
13.75 28 3 Stainless Steel 3600-4000 Up to 23' 64-70
Plus Series ‑ 383 MAG Bravo 4V ‑ (350 HP) ‑ V8 Bravo Three
Propellers ‑ For Single Engine Boats
WOT: 4800‑5200 RPM, Alternate Sea Level Gear Ratio 2.20:1
High Altitude (5,000+ ft.) Gear Ratio: 2.43:1
Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
16.00 20 4 Stainless Steel 6900-8600 26-30' 32-39
14.38 20 3 Stainless Steel 6900-8600 26-30' 32-39
15.75 22 4 Stainless Steel 6000-7300 25-28' 37-44
14.25 22 3 Stainless Steel 6000-7300 25-28' 37-44
15.50 24 4 Stainless Steel 5500-6300 24-26' 42-49
14.25 24 3 Stainless Steel 5500-6300 24-26' 42-49
15.25 26 4 Stainless Steel 4900-5600 23-26' 47-53
14.00 26 3 Stainless Steel 4900-5600 23-26' 47-53
15.00 28 4 Stainless Steel 4500-5100 Up to 25' 51-57
13.75 28 3 Stainless Steel 4500-5100 Up to 25' 51-57

72
