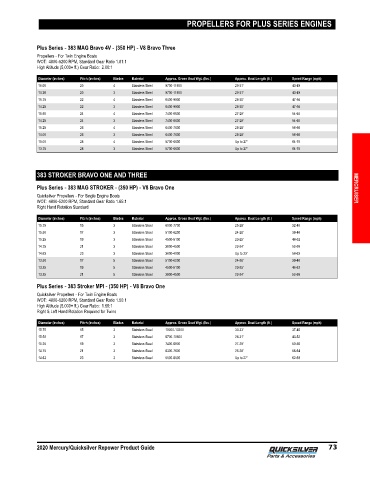

Page 90 - Repower Reference Guide (2020) 8M0149179

PROPELLERS FOR PLUS SERIES ENGINES

Plus Series ‑ 383 MAG Bravo 4V ‑ (350 HP) ‑ V8 Bravo Three
Propellers ‑ For Twin Engine Boats
WOT: 4800‑5200 RPM, Standard Gear Ratio 1.81:1
High Altitude (5,000+ ft.) Gear Ratio: 2.00:1

Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
16.00 20 4 Stainless Steel 9700-11500 29-31' 43-49
14.38 20 3 Stainless Steel 9700-11500 29-31' 43-49
15.75 22 4 Stainless Steel 8400-9900 28-30' 47-56
14.25 22 3 Stainless Steel 8400-9900 28-30' 47-56
15.50 24 4 Stainless Steel 7400-8600 27-29' 54-60
14.25 24 3 Stainless Steel 7400-8600 27-29' 54-60
15.25 26 4 Stainless Steel 6400-7600 26-28' 58-66
14.00 26 3 Stainless Steel 6400-7600 26-28' 58-66
15.00 28 4 Stainless Steel 5700-6600 Up to 27' 64-70
13.75 28 3 Stainless Steel 5700-6600 Up to 27' 64-70

383 STROKER BRAVO ONE AND THREE

Plus Series ‑ 383 MAG STROKER ‑ (350 HP) ‑ V8 Bravo One MERCRUISER
Quicksilver Propellers ‑ For Single Engine Boats
WOT: 4800‑5200 RPM, Standard Gear Ratio 1.65:1
Right Hand Rotation Standard

Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
15.75 15 3 Stainless Steel 6000-7700 25-28' 32-40
15.50 17 3 Stainless Steel 5100-6200 24-26' 39-46
15.25 19 3 Stainless Steel 4500-5100 23-25' 46-52
14.75 21 3 Stainless Steel 3800-4500 22-24' 52-58
14.63 23 3 Stainless Steel 3600-4000 Up to 23' 56-63
13.50 17 5 Stainless Steel 5100-6200 24-26' 39-46
13.25 19 5 Stainless Steel 4500-5100 23-25' 46-52
13.25 21 5 Stainless Steel 3800-4500 22-24' 52-58
Plus Series ‑ 383 Stroker MPI ‑ (350 HP) ‑ V8 Bravo One
Quicksilver Propellers ‑ For Twin Engine Boats
WOT: 4800‑5200 RPM, Standard Gear Ratio 1.50:1
High Altitude (5,000+ ft.) Gear Ratio: 1.65:1
Right & Left Hand Rotation Required for Twins
Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
15.75 15 3 Stainless Steel 10200-13200 30-33' 37-45
15.50 17 3 Stainless Steel 8700-10600 28-31' 43-52
15.25 19 3 Stainless Steel 7400-8900 27-29' 50-58
14.75 21 3 Stainless Steel 6300-7600 26-28' 56-64
14.63 23 3 Stainless Steel 5500-6500 Up to 27' 62-69

2020 Mercury/Quicksilver Repower Product Guide 73
