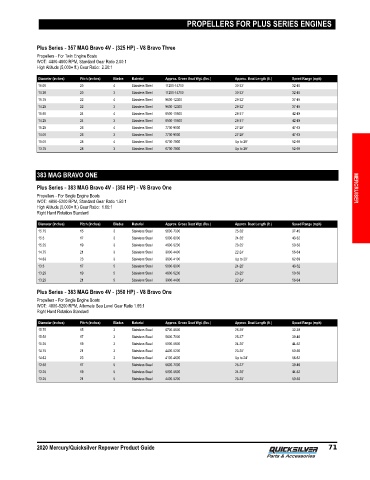

PROPELLERS FOR PLUS SERIES ENGINES

Plus Series ‑ 357 MAG Bravo 4V ‑ (325 HP) ‑ V8 Bravo Three
Propellers ‑ For Twin Engine Boats
WOT: 4400‑4800 RPM, Standard Gear Ratio 2.00:1
High Altitude (5,000+ ft.) Gear Ratio: 2.20:1

Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
16.00 20 4 Stainless Steel 11200-14700 30-33' 32-40
14.38 20 3 Stainless Steel 11200-14700 30-33' 32-40
15.75 22 4 Stainless Steel 9600-12300 29-32' 37-45
14.25 22 3 Stainless Steel 9600-12300 29-32' 37-45
15.50 24 4 Stainless Steel 8500-10500 28-31' 42-49
14.25 24 3 Stainless Steel 8500-10500 28-31' 42-49
15.25 26 4 Stainless Steel 7700-9000 27-29' 47-53
14.00 26 3 Stainless Steel 7700-9000 27-29' 47-53
15.00 28 4 Stainless Steel 6700-7900 Up to 28' 52-58
13.75 28 3 Stainless Steel 6700-7900 Up to 28' 52-58

383 MAG BRAVO ONE

Plus Series ‑ 383 MAG Bravo 4V ‑ (350 HP) ‑ V8 Bravo One MERCRUISER
Propellers ‑ For Single Engine Boats
WOT: 4800‑5200 RPM, Standard Gear Ratio 1.50:1
High Altitude (5,000+ ft.) Gear Ratio: 1.65:1
Right Hand Rotation Standard

Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
15.75 15 3 Stainless Steel 5800-7300 25-28' 37-45
15.5 17 3 Stainless Steel 5000-6000 24-26' 43-52
15.25 19 3 Stainless Steel 4600-5200 23-25' 50-58
14.75 21 3 Stainless Steel 3900-4400 22-24' 56-64
14.63 23 3 Stainless Steel 3600-4100 Up to 23' 62-69
13.5 17 5 Stainless Steel 5000-6000 24-26' 43-52
13.25 19 5 Stainless Steel 4600-5200 23-25' 50-58
13.25 21 5 Stainless Steel 3900-4400 22-24' 56-64

Plus Series ‑ 383 MAG Bravo 4V ‑ (350 HP) ‑ V8 Bravo One
Propellers ‑ For Single Engine Boats
WOT: 4800‑5200 RPM, Alternate Sea Level Gear Ratio 1.65:1
Right Hand Rotation Standard
Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
15.75 15 3 Stainless Steel 6700-8600 26-29' 32-39
15.50 17 3 Stainless Steel 5600-7000 25-27' 39-46
15.25 19 3 Stainless Steel 5000-5800 24-26' 44-52
14.75 21 3 Stainless Steel 4400-5200 23-25' 50-58
14.63 23 3 Stainless Steel 4100-4600 Up to 24' 56-62
13.50 17 5 Stainless Steel 5600-7000 25-27' 39-46
13.25 19 5 Stainless Steel 5000-5800 24-26' 44-52
13.25 21 5 Stainless Steel 4400-5200 23-25' 50-58

2020 Mercury/Quicksilver Repower Product Guide 71
