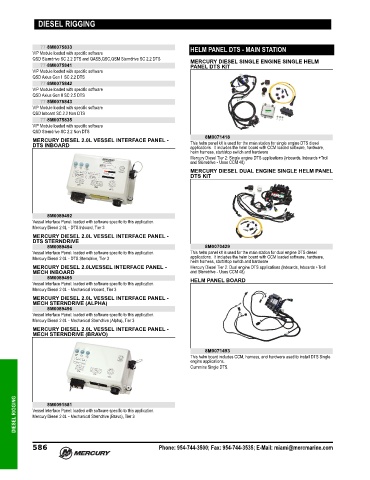

Page 595 - Latin America Accessories Guide (2020) - 8M0163252

DIESEL RIGGING

77-8M0075833 HELM PANEL DTS - MAIN STATION
VIP Module loaded with specific software
QSD Sterndrive SC 2.2 DTS and QASB,QSC,QSM Sterndrive SC 2.2 DTS MERCURY DIESEL SINGLE ENGINE SINGLE HELM
77-8M0075841 PANEL DTS KIT
VIP Module loaded with specific software
QSD Axius Gen I SC 2.2 DTS
77-8M0075842
VIP Module loaded with specific software
QSD Axius Gen II SC 2.5 DTS
77-8M0075843
VIP Module loaded with specific software
QSD Inboard SC 2.2 Non DTS
77-8M0075835
VIP Module loaded with specific software
QSD Sterndrive SC 2.2 Non DTS
8M0071418
MERCURY DIESEL 2.0L VESSEL INTERFACE PANEL -
DTS INBOARD This helm panel kit is used for the main station for single engine DTS diesel
applications. It includes the helm board with CCM loaded software, hardware,
helm harness, start/stop switch and hardware
Mercury Diesel Tier 2: Single engine DTS applications (Inboards, Inboards +Troll
and Sterndrive ‑ Uses CCM 48)
MERCURY DIESEL DUAL ENGINE SINGLE HELM PANEL
DTS KIT

8M0089492
Vessel Interface Panel: loaded with software specific to this application.
Mercury Diesel 2.0L ‑ DTS Inboard, Tier 3
MERCURY DIESEL 2.0L VESSEL INTERFACE PANEL -
DTS STERNDRIVE
8M0089494 8M0070429
Vessel Interface Panel: loaded with software specific to this application. This helm panel kit is used for the main station for dual engine DTS diesel
Mercury Diesel 2.0L ‑ DTS Sterndrive, Tier 3 applications. It includes the helm board with CCM loaded software, hardware,
helm harness, start/stop switch and hardware
MERCURY DIESEL 2.0LVESSEL INTERFACE PANEL - Mercury Diesel Tier 2: Dual engine DTS applications (Inboards, Inboards +Troll
MECH INBOARD and Sterndrive ‑ Uses CCM 48)
8M0089495 HELM PANEL BOARD
Vessel Interface Panel: loaded with software specific to this application.
Mercury Diesel 2.0L ‑ Mechanical Inboard, Tier 3
MERCURY DIESEL 2.0L VESSEL INTERFACE PANEL -
MECH STERNDRIVE (ALPHA)
8M0089496
Vessel Interface Panel: loaded with software specific to this application.
Mercury Diesel 2.0L ‑ Mechanical Sterndrive (Alpha), Tier 3
MERCURY DIESEL 2.0L VESSEL INTERFACE PANEL -
MECH STERNDRIVE (BRAVO)

8M0071493
This helm board includes CCM, harness, and hardware used to install DTS Single
engine applications.
Cummins Single DTS.

DIESEL RIGGING Vessel Interface Panel: loaded with software specific to this application.
8M0091581
Mercury Diesel 2.0L ‑ Mechanical Sterndrive (Bravo), Tier 3
