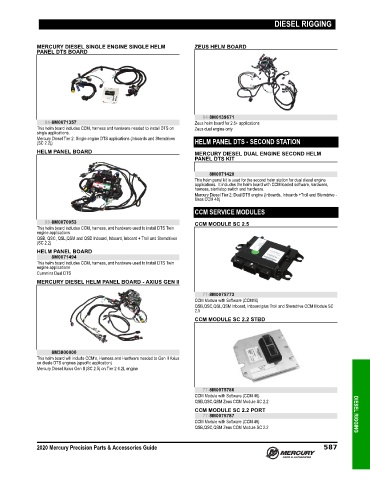

Page 596 - Latin America Accessories Guide (2020) - 8M0163252

DIESEL RIGGING

MERCURY DIESEL SINGLE ENGINE SINGLE HELM ZEUS HELM BOARD
PANEL DTS BOARD

84-8M0139671
84-8M0071357 Zeus helm board for 2.5+ applications
This helm board includes CCM, harness and hardware needed to install DTS on Zeus dual engine only
single applications.
Mercury Diesel Tier 2: Single engine DTS applications (Inboards and Sterndrives
(SC 2.2)) HELM PANEL DTS - SECOND STATION
HELM PANEL BOARD MERCURY DIESEL DUAL ENGINE SECOND HELM
PANEL DTS KIT

8M0071420
This helm panel kit is used for the second helm station for dual diesel engine
applications. It includes the helm board with CCM loaded software, hardware,
harness, start/stop switch and hardware.
Mercury Diesel Tier 2: Dual DTS engine (Inboards, Inboards +Troll and Sterndrive ‑
Uses CCM 48)
CCM SERVICE MODULES
98-8M0070953 CCM MODULE SC 2.5
This helm board includes CCM, harness, and hardware used to install DTS Twin
engine applications
QSB, QSC, QSL,QSM and QSD Inboard, Inboard, Inboard + Troll and Sterndrives
(SC 2.2)
HELM PANEL BOARD
8M0071494
This helm board includes CCM, harness, and hardware used to install DTS Twin
engine applications
Cummins Dual DTS
MERCURY DIESEL HELM PANEL BOARD - AXIUS GEN II
77-8M0075773
CCM Module with Software (CCM10)
QSB,QSC,QSL,QSM Inboard, Inboard plus Troll and Sterndrive CCM Module SC
2.5
CCM MODULE SC 2.2 STBD

8M3800000
This helm board will include CCM's, Harness and Hardware needed to Gen II Axius
on diesle DTS engines (specific application)
Mercury Diesel Axius Gen II (SC 2.5) on Tier 2 4.2L engine

77-8M0075786
CCM Module with Software (CCM 48)
QSB,QSC,QSM Zeus CCM Module SC 2.2
CCM MODULE SC 2.2 PORT
77-8M0075787 DIESEL RIGGING
CCM Module with Software (CCM 48)
QSB,QSC,QSM Zeus CCM Module SC 2.2

2020 Mercury Precision Parts & Accessories Guide 587
