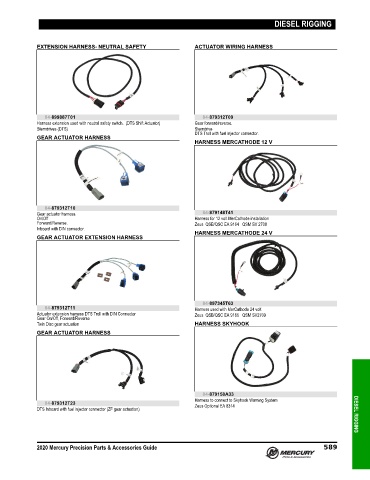

Page 598 - Latin America Accessories Guide (2020) - 8M0163252

DIESEL RIGGING

EXTENSION HARNESS- NEUTRAL SAFETY ACTUATOR WIRING HARNESS

84-899887T01 84-879312T09
Harness extension used with neutral safety switch. (DTS Shift Actuator) Gear forward/reverse.
Sterndrives (DTS) Sterndrive
DTS Troll with fuel injector connector.
GEAR ACTUATOR HARNESS
HARNESS MERCATHODE 12 V

84-879312T10
Gear actuator harness. 84-879148T41
On/Off Harness for 12 volt MerCathode installation
Forward/Reverse. Zeus QSB/QSC EA 9164 QSM SV 2709
Inboard with DIN connector.
HARNESS MERCATHODE 24 V
GEAR ACTUATOR EXTENSION HARNESS

84-897345T63
84-879312T11 Harness used with MerCathode 24 volt
Actuator extension harness DTS Troll with DIN Connector Zeus QSB/QSC EA 9165 QSM SV2709
Gear On/Off, Forward/Reverse
Twin Disc gear actuation HARNESS SKYHOOK
GEAR ACTUATOR HARNESS

84-879150A33
Harness to connect to Skyhook Warning System
84-879312T23 Zeus Optional EA 8314
DTS Inboard with fuel injector connector (ZF gear actuation) DIESEL RIGGING

2020 Mercury Precision Parts & Accessories Guide 589
