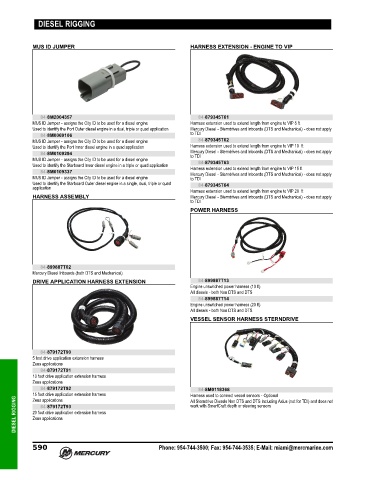

DIESEL RIGGING

MUS ID JUMPER HARNESS EXTENSION - ENGINE TO VIP

84-8M2004357 84-879345T61
MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine Harness extension used to extend length from engine to VIP 5 ft
Used to identify the Port Outer diesel engine in a dual, triple or quad application Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply
84-8M0069106 to TDI
MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine 84-879345T62
Used to identify the Port Inner diesel engine in a quad application Harness extension used to extend length from engine to VIP 10 ft
84-8M0109294 Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply
to TDI
MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine
84-879345T63
Used to identify the Starboard Inner diesel engine in a triple or quad application Harness extension used to extend length from engine to VIP 15 ft
84-8M0109337 Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply
MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine to TDI
Used to identify the Starboard Outer diesel engine in a single, dual, triple or quad 84-879345T64
application
Harness extension used to extend length from engine to VIP 20 ft
HARNESS ASSEMBLY Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply
to TDI
POWER HARNESS

84-899887T02
Mercury Diesel Inboards (both DTS and Mechanical)
DRIVE APPLICATION HARNESS EXTENSION 84-899887T13
Engine unswitched power harness (10 ft)
All diesels ‑ both Non DTS and DTS
84-899887T14
Engine unswitched power harness (20 ft)
All diesels ‑ both Non DTS and DTS
VESSEL SENSOR HARNESS STERNDRIVE

84-879172T90
5 foot drive application extension harness
Zeus applications
84-879172T91
10 foot drive application extension harness
Zeus applications
84-879172T92 84-8M0118368
15 foot drive application extension harness Harness used to connect vessel sensors ‑ Optional
DIESEL RIGGING 20 foot drive application extension harness work with SmartCraft depth or steering sensors
Zeus applications
All Sterndrive Diesels Non DTS and DTS Including Axius (not for TDI) and does not
84-879172T93
Zeus applications
