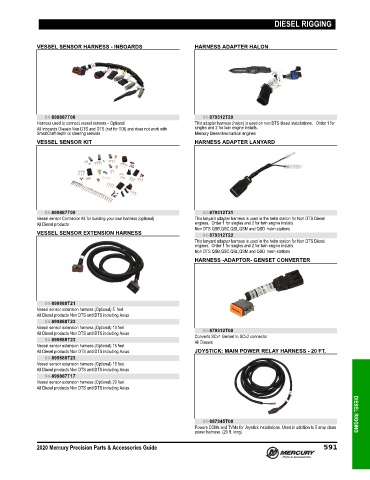

Page 600 - Latin America Accessories Guide (2020) - 8M0163252

DIESEL RIGGING

VESSEL SENSOR HARNESS - INBOARDS HARNESS ADAPTER HALON

84-899887T08 84-879312T20
Harness used to connect vessel sensors ‑ Optional This adapter harness (halon) is used on non DTS diesel installations. Order 1 for
All Inboards Diesels Non DTS and DTS (not for TDI) and does not work with singles and 2 for twin engine installs.
SmartCraft depth or steering sensors Mercury Diesel Mechanical engines
VESSEL SENSOR KIT HARNESS ADAPTER LANYARD

84-899887T09 84-879312T21
Vessel sensor Connector Kit for building your own harness (optional) This lanyard adapter harness is used in the helm station for Non DTS Diesel
All Diesel products engines. Order 1 for singles and 2 for twin engine installs
Non DTS QSB,QSC,QSL,QSM and QSD helm stations
VESSEL SENSOR EXTENSION HARNESS
84-879312T22
This lanyard adapter harness is used in the helm station for Non DTS Diesel
engines. Order 1 for singles and 2 for twin engine installs
Non DTS QSB,QSC,QSL,QSM and QSD helm stations
HARNESS -ADAPTOR- GENSET CONVERTER

84-899888T21
Vessel sensor extension harness (Optional) 5 feet
All Diesel products Non DTS and DTS including Axius
84-899888T22
Vessel sensor extension harness (Optional) 10 feet
All Diesel products Non DTS and DTS including Axius 84-879312T08
84-899888T23 Converts SCv1 Genset to SCv2 connector
All Diesels
Vessel sensor extension harness (Optional) 15 feet
All Diesel products Non DTS and DTS including Axius JOYSTICK: MAIN POWER RELAY HARNESS - 20 FT.
84-899888T23
Vessel sensor extension harness (Optional) 15 feet
All Diesel products Non DTS and DTS including Axius
84-899887T17
Vessel sensor extension harness (Optional) 20 feet
All Diesel products Non DTS and DTS including Axius

84-897345T08 DIESEL RIGGING
Powers CCMs and TVMs for Joystick installations. Used in addition to 5 amp clean
power harness. (20 ft. long)
