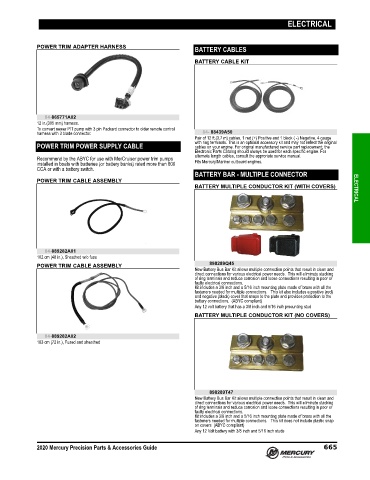

Page 674 - Latin America Accessories Guide (2020) - 8M0163252

ELECTRICAL

POWER TRIM ADAPTER HARNESS
BATTERY CABLES
BATTERY CABLE KIT

84-865771A02
12 in.(305 mm) harness.
To convert newer P/T pump with 3 pin Packard connector to older remote control
harness with 3 blade connector. 84- 88439A50
Pair of 12 ft.(3.7 m) cables, 1 red (+) Positive and 1 black ( ‑) Negative, 4 gauge
POWER TRIM POWER SUPPLY CABLE with ring terminals. This is an optional accessory kit and may not reflect the original
cables on your engine. For original manufactured service part replacement, the
Electronic Parts Catalog should always be used for each specific engine. For
alternate length cables, consult the approriate service manual.
Recommend by the ABYC for use with MerCruiser power trim pumps
installed in boats with batteries (or battery banks) rated more than 800 Fits Mercury/Mariner outboard engines.
CCA or with a battery switch.
BATTERY BAR - MULTIPLE CONNECTOR
POWER TRIM CABLE ASSEMBLY
BATTERY MULTIPLE CONDUCTOR KIT (WITH COVERS) ELECTRICAL

84-889282A01
102 cm (48 in.), Sheathed w/o fuse
898289Q45
POWER TRIM CABLE ASSEMBLY
New Battery Bus Bar Kit allows multiple connection points that result in clean and
direct connections for various electrical power needs. This will eliminate stacking
of ring terminals and reduce corrosion and loose connections resulting in poor or
faulty electrical connections.
Kit includes a 3/8 inch and a 5/16 inch mounting plate made of brass with all the
fasteners needed for multiple connections. This kit also includes a positive (red)
and negative (black) cover that snaps to the plate and provides protection to the
battery connections. (ABYC compliant)
Any 12 volt battery that has a 3/8 inch and 5/16 inch pmounting stud
BATTERY MULTIPLE CONDUCTOR KIT (NO COVERS)

84-889282A02
183 cm (72 in.), Fused and sheathed

898289T47
New Battery Bus Bar Kit allows multiple connection points that result in clean and
direct connections for various electrical power needs. This will eliminate stacking
of ring terminals and reduce corrosion and loose connections resulting in poor or
faulty electrical connections.
Kit includes a 3/8 inch and a 5/16 inch mounting plate made of brass with all the
fasteners needed for multiple connections. This kit does not include plastic snap
on covers (ABYC compliant)
Any 12 Volt battery with 3/8 inch and 5/16 inch studs

2020 Mercury Precision Parts & Accessories Guide 665
