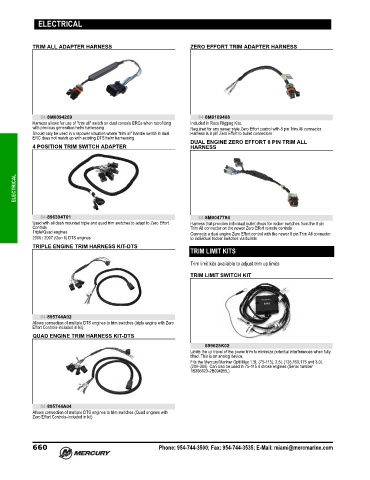

TRIM ALL ADAPTER HARNESS ZERO EFFORT TRIM ADAPTER HARNESS

84-8M0094269 84-8M0109408
Harness allows for use of "trim all" switch on dual console ERCs when retrofitting Included in Race Rigging Kits.
with previous generation helm harnessing Required for any newer style Zero Effort control with 8 pin Trim All connector.
Should only be used in a repower situation where "trim all" handle switch in dual Harness is 8 pin Zero Effort to bullet connectors
ERC does not match up with existing DTS helm harnessing
DUAL ENGINE ZERO EFFORT 8 PIN TRIM ALL
4 POSITION TRIM SWITCH ADAPTER HARNESS

ELECTRICAL

84-896394T01 84-8M0047784
Used with all dash mounted triple and quad trim switches to adapt to Zero Effort Harness that provides individual bullet drops for rocker switches from the 8 pin
Controls Trim All connector on the newer Zero Effort remote controls
Triple/Quad engines Connects a dual engine Zero Effort control with the newer 8 pin Trim All connector
2006 / 2007 (Gen II) DTS engines to individual rocker switches via bullets
TRIPLE ENGINE TRIM HARNESS KIT-DTS
TRIM LIMIT KITS

Trim limit kits available to adjust trim up limits
TRIM LIMIT SWITCH KIT

84-895744A02
Allows connection of multiple DTS engines to trim switches (triple engine with Zero
Effort Controls‑included in kit)
QUAD ENGINE TRIM HARNESS KIT-DTS
899625K02
Limits the up travel of the power trim to minimize potential interferences when fully
tilted. This is an analog device.
Fits the Mercury/Mariner Opti Max 1.5L (75‑115), 2.5L (135,150,175 and 3.0L
(200‑300) Can also be used in 75‑115 4 stroke engines (Serial number
1B366823‑2B094955.)

84-895744A04
Allows connection of multiple DTS engines to trim switches (Quad engines with
Zero Effort Controls‑included in kit)
