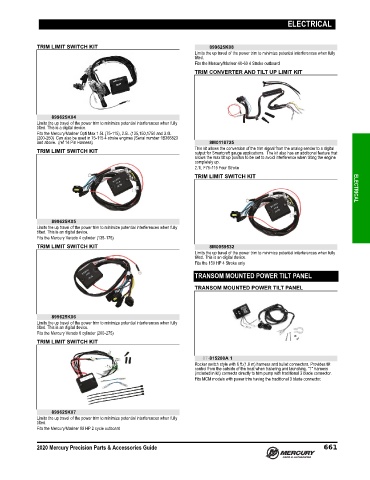

Page 670 - Latin America Accessories Guide (2020) - 8M0163252

ELECTRICAL

TRIM LIMIT SWITCH KIT 899625K08
Limits the up travel of the power trim to minimize potential interferences when fully
tilted.
Fits the Mercury/Mariner 40‑60 4 Stroke outboard
TRIM CONVERTER AND TILT UP LIMIT KIT

899625K04
Limits the up travel of the power trim to minimize potential interferences when fully
tilted. This is a digital device.
Fits the Mercury/Mariner Opti Max 1.5L (75‑115), 2.5L (135,150,1750 and 3.0L
(200‑250) Can also be used in 75‑115 4 stroke engines (Serial number 1B366823
and above. (ref 14 Pin Harness) 8M0118725
TRIM LIMIT SWITCH KIT This kit allows the conversion of the trim signal from the analog sender to a digital
output for Smartcraft gauge applications. The kit also has an additional feature that
allows the max tilt up positon to be set to avoid interference when tilting the engine
completely up.
2.1L F75‑115 Four Stroke
TRIM LIMIT SWITCH KIT ELECTRICAL

899625K05
Limits the up travel of the power trim to minimize potential interferences when fully
tilted. This is an digital device.
Fits the Mercury Verado 4 cylinder (135‑175)
TRIM LIMIT SWITCH KIT 8M0059532
Limits the up travel of the power trim to minimize potential interferences when fully
tilted. This is an digital device.
Fits the 150 HP 4 Stroke only
TRANSOM MOUNTED POWER TILT PANEL

TRANSOM MOUNTED POWER TILT PANEL

899625K06
Limits the up travel of the power trim to minimize potential interferences when fully
tilted. This is an digital device.
Fits the Mercury Verado 6 cylinder (200‑275)
TRIM LIMIT SWITCH KIT

87-815200A 1
Rocker switch style with 6 ft.(1.8 m) harness and bullet connectors. Provides tilt
control from the outside of the boat when trailering and launching. "T" harness
(included in kit) connects directly to trim pump with traditional 3 blade connector.
Fits MCM models with power trim having the traditional 3 blade connector.

899625K07
Limits the up travel of the power trim to minimize potential interferences when fully
tilted.
Fits the Mercury/Mariner 90 HP 2 cycle outboard

2020 Mercury Precision Parts & Accessories Guide 661
