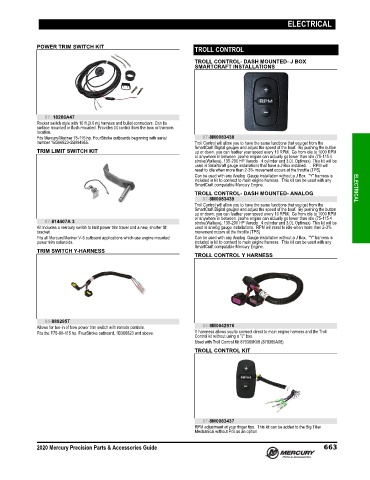

Page 672 - Latin America Accessories Guide (2020) - 8M0163252

ELECTRICAL

POWER TRIM SWITCH KIT
TROLL CONTROL
TROLL CONTROL- DASH MOUNTED- J BOX
SMARTCRAFT INSTALLATIONS

87- 18286A47
Rocker switch style with 10 ft.(3.0 m) harness and bullet connectors. Can be
surface mounted or flush mounted. Provides tilt control from the bow or transom
location.
Fits Mercury/Mariner 75‑115 hp. FourStroke outboards beginning with serial 87-8M0083438
number 1B366823‑2B094955. Troll Control will allow you to have the same functions that you get from the
SmartCraft Digital gauges and adjust the speed of the boat. By pushing the button
TRIM LIMIT SWITCH KIT up or down, you can feather your speed every 10 RPM. Go from idle to 1000 RPM
or anywhere in between. (some engine can actually go lower than idle (75‑115 4
stroke(Walleye), 135‑200 HP Verado 4 cylinder and 3.0L Optimax) This kit will be
used in Smartcraft gauge installations that have a J Box installed. . RPM will
reset to idle when more than 2‑3% movement occurs at the throttle (TPS)
Can be used with any Analog Gauge installation without a J Box. "Y" harness is
included in kit to connect to main engine hanress. This kit can be used with any
SmartCraft compatable Mercury Engine. ELECTRICAL
TROLL CONTROL- DASH MOUNTED- ANALOG
87-8M0083439
Troll Control will allow you to have the same functions that you get from the
SmartCraft Digital gauges and adjust the speed of the boat. By pushing the button
up or down, you can feather your speed every 10 RPM. Go from idle to 1000 RPM
or anywhere in between. (some engine can actually go lower than idle (75‑115 4
87-814407A 3 stroke(Walleye), 135‑200 HP Verado 4 cylinder and 3.0L Optimax) This kit will be
Kit includes a mercury switch to limit power trim travel and a new, shorter tilt used in analog gauge installations. RPM will reset to idle when more than 2‑3%
bracket. movement occurs at the throttle (TPS)
Fits all Mercury/Mariner V‑6 outboard applications which use engine mounted Can be used with any Analog Gauge installation without a J Box. "Y" harness is
power trim solenoids. included in kit to connect to main engine hanress. This kit can be used with any
SmartCraft compatable Mercury Engine.
TRIM SWITCH Y-HARNESS
TROLL CONTROL Y HARNESS

84-889295T
Allows for tee‑in of bow power trim switch with remote controls. 84-8M0042976
Fits the F75‑90‑115 hp. FourStroke outboard, 1B366823 and above. Y hareness allows you to connect direct to main engine harness and the Troll
Control kit without using a "J" box.
Used with Troll Control Kit 879365K08 (879365A08)
TROLL CONTROL KIT

87-8M0083437
RPM adjustment at your finger tips. This kit can be added to the Big Tiller
Mechanical without P/S as an option
