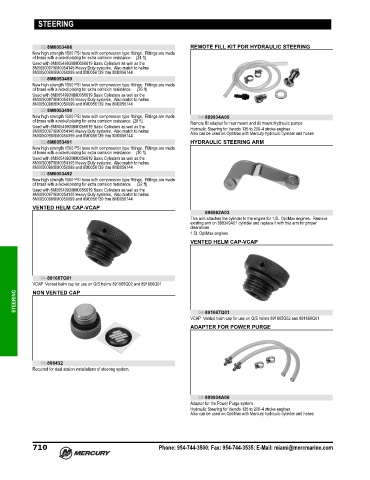

Page 719 - Latin America Accessories Guide (2020) - 8M0163252

STEERING

32-8M0053488 REMOTE FILL KIT FOR HYDRAULIC STEERING
New high strength 1500 PSI hose with compression type fittings. Fittings are made
of brass with a nickel plating for extra corrision resistance. (24 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
32-8M0053489
New high strength 1500 PSI hose with compression type fittings. Fittings are made
of brass with a nickel plating for extra corrision resistance. (26 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
32-8M0053490
New high strength 1500 PSI hose with compression type fittings. Fittings are made 64-889934A05
of brass with a nickel plating for extra corrision resistance. (28 ft) Remote fill adapter for rear mount and tilt mount Hydraulic pumps
Used with 8M0054993/8M0056619 Basic Cylinders as well as the Hydraulic Steering for Verado 135 to 200‑4 stroke engines
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144 Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
32-8M0053491 HYDRAULIC STEERING ARM
New high strength 1500 PSI hose with compression type fittings. Fittings are made
of brass with a nickel plating for extra corrision resistance. (30 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
32-8M0053492
New high strength 1500 PSI hose with compression type fittings. Fittings are made
of brass with a nickel plating for extra corrision resistance. (32 ft)
Used with 8M0054993/8M0056619 Basic Cylinders as well as the
8M0050097/8M0054145 Heavy Duty systems, Also match to helms
8M0050098/8M0050099 and 8M0056139 thru 8M0056144
VENTED HELM CAP-VCAP
898082A03
This arm attaches the cylinder to the engine for 1.5L OptiMax engines. Remove
existing arm on 898349A01 cylinder and replace it with this arm for proper
clearances
1.5L OptiMax engines
VENTED HELM CAP-VCAP

64-891667Q01
VCAP Vented helm cap for use on Q/S helms 891665Q02 and 891666Q01
STEERING
NON VENTED CAP

64-891667Q01
VCAP Vented helm cap for use on Q/S helms 891665Q02 and 891666Q01
ADAPTER FOR POWER PURGE

19-898432
Required for dual station installations of steering system.

64-889934A06
Adapter for the Power Purge system
Hydraulic Steering for Verado 135 to 200‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses

710 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
