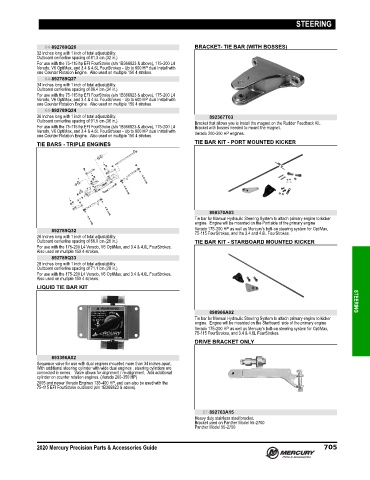

Page 714 - Latin America Accessories Guide (2020) - 8M0163252

STEERING

64-892789Q26 BRACKET- TIE BAR (WITH BOSSES)
32 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 81.3 cm (32 in.)
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-892789Q27
34 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 86.4 cm (34 in.)
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-892789Q24
36 Inches long with 1 inch of total adjustability. 892367T03
Outboard centerline spacing of 91.5 cm (36 in.) Bracket that allows you to install the magnet on the Rudder Feedback Kit.
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above), 175‑200 L4 Bracket with bosses needed to mount the magnet.
Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual Install with
one Counter Rotation Engine. Also used on multiple 150 4 strokes. Verado 200‑300 HP engines.
TIE BARS - TRIPLE ENGINES TIE BAR KIT - PORT MOUNTED KICKER

898370A03
Tie bar for Manual Hydraulic Steering System to attach primary engine to kicker
engine. Engine will be mounted on the Port side of the primary engine
892789Q32 Verado 175‑200 HP as well as Mercury's bolt‑on steering system for OptiMax,
75‑115 FourStrokes, and the 3.4 and 4.6L FourStrokes.
26 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 66.0 cm (26 in.) TIE BAR KIT - STARBOARD MOUNTED KICKER
For use with the 175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes.
Also used on multiple 150 4 strokes.
892789Q33
28 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 71.1 cm (28 in.)
For use with the 175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes.
Also used on multiple 150 4 strokes.
LIQUID TIE BAR KIT

898966A02 STEERING
Tie bar for Manual Hydraulic Steering System to attach primary engine to kicker
engine. Engine will be mounted on the Starboard side of the primary engine
Verado 175‑200 HP as well as Mercury's bolt‑on steering system for OptiMax,
75‑115 FourStrokes, and 3.4 & 4.6L FourStrokes.
DRIVE BRACKET ONLY

893396A02
Sequence valve for use with dual engines mounted more than 34 inches apart.
With additional steering cylinder with wide dual engines , steering cylinders are
connected in series . Valve allows for alignment / re‑alignment. Add additional
cylinder on counter rotation engines. (Verado 200‑350 HP)
2005 and newer Verado Engines 135‑400 HP, and can also be used with the
75‑115 EFI FourStroke outboard (s/n 1B366823 & above).

67-892763A15
Heavy duty stainless steel bracket.
Bracket used on Panther Model 55‑2700
Panther Model 55‑2750

2020 Mercury Precision Parts & Accessories Guide 705
