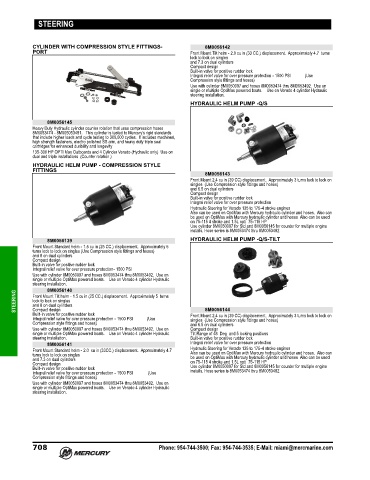

Page 717 - Latin America Accessories Guide (2020) - 8M0163252

STEERING

CYLINDER WITH COMPRESSION STYLE FITTINGS- 8M0056142
PORT Front Mount Tilt helm ‑ 2.0 cu in (33 CC.) displacement. Approximately 4.7 turns
lock to lock on singles
and 7.3 on dual cylinders
Compact design
Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection ‑ 1500 PSI (Use
Compression style fittings and hoses)
Use with cylinder 8M0050097 and hoses 8M0053474 thru 8M0053492. Use on
single or multiple OptiMax powered boats. Use on Verado 4 cylinder Hydraulic
steering installation.
HYDRAULIC HELM PUMP -Q/S

8M0056145
Heavy Duty Hydraulic cylinder counter rotation that uses compression hoses
8M0053474 ‑ 8M005053491. This cylinder is tested to Mercury's rigid standards
that include higher loads and cycle testing to 300,000 cycles. It includes machined,
high strength fasteners, electro polished SS arm, and heavy duty triple seal
cartridges for enhanced duribility and longevity
135‑300 HP OPTI Max Outboards and 4 Cylinder Verado (Hydraulic only) Use on
dual and triple installations (Counter rotation )
HYDRAULIC HELM PUMP - COMPRESSION STYLE
FITTINGS
8M0056143
Front Mount 2.4 cu in (39 CC) displacement. Approximately 3 turns lock to lock on
singles (Use Compression style fittings and hoses)
and 6.5 on dual cylinders
Compact design
Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection
Hydraulic Steering for Verado 135 to 175‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can
be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used
on 75‑115 4 stroke and 1.5L opti 75‑115 HP
Use cylinder 8M0050097 for Std and 8M0056145 for counter for multiple engine
installs. Hose series is 8M0053474 thru 8M0053492
8M0056139 HYDRAULIC HELM PUMP -Q/S-TILT
Front Mount Standard helm ‑ 1.5 cu in (25 CC.) displacement. Approximately 5
turns lock to lock on singles (Use Compression style fittings and hoses)
and 8 on dual cylinders
Compact design
Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection‑ 1500 PSI
Use with cylinder 8M0050097 and hoses 8M0053474 thru 8M0053492. Use on
single or multiple OptiMax powered boats. Use on Verado 4 cylinder Hydraulic
steering installation.
8M0056140
STEERING Front Mount Tilt helm ‑ 1.5 cu in (25 CC.) displacement. Approximately 5 turns
lock to lock on singles
and 8 on dual cylinders
8M0056144
Compact design
Built‑in valve for positive rudder lock Front Mount 2.4 cu in (39 CC) displacement. Approximately 3 turns lock to lock on
Integral relief valve for over pressure protection ‑ 1500 PSI (Use singles (Use Compression style fittings and hoses)
Compression style fittings and hoses) and 6.5 on dual cylinders
Use with cylinder 8M0050097 and hoses 8M0053474 thru 8M0053492. Use on Compact design
single or multiple OptiMax powered boats. Use on Verado 4 cylinder Hydraulic Tilt Range of 48 Deg and 5 locking positions
steering installation. Built‑in valve for positive rudder lock
8M0056141 Integral relief valve for over pressure protection
Front Mount Standard helm ‑ 2.0 cu in (33CC.) displacement. Approximately 4.7 Hydraulic Steering for Verado 135 to 175‑4 stroke engines
turns lock to lock on singles Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can
and 7.3 on dual cylinders be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used
on 75‑115 4 stroke and 1.5L opti 75‑115 HP
Compact design
Built‑in valve for positive rudder lock Use cylinder 8M0050097 for Std and 8M0056145 for counter for multiple engine
installs. Hose series is 8M0053474 thru 8M0053492
Integral relief valve for over pressure protection ‑ 1500 PSI (Use
Compression style fittings and hoses)
Use with cylinder 8M0050097 and hoses 8M0053474 thru 8M0053492. Use on
single or multiple OptiMax powered boats. Use on Verado 4 cylinder Hydraulic
steering installation.

708 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
