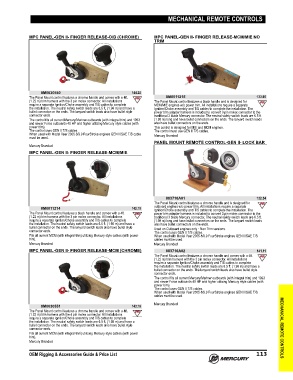

Page 126 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MECHANICAL REMOTE CONTROLS

MPC PANEL-GEN II- FINGER RELEASE-O/B (CHROME) MPC PANEL-GEN II- FINGER RELEASE-MCM/MIE NO
TRIM

8M0030550 144.22
The Panel Mount control features a chrome handle and comes with a 4ft. 8M0011215 133.85
(1.22 m) trim harness with the 3 pin molex connector. All installations The Panel Mount control features a black handle and is designed for
require a separate Ignition/Choke assembly and T/S cables to complete MCM/MIE engines w/o power trim. All installations require a separate
the installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and have a Ignition/Choke assembly and T/S cables to complete the installation. The
bullet connector on the ends. The lanyard switch leads also have bullet style power trim adapter harness is included to convert 3 pin molex connector to the
connector ends. traditional 3 blade Mercury connector. The neutral safety switch leads are 6.5 ft.
The control fits all current Mercury/Mariner outboards (with integral trim) and 1993 (1.98 m) long and have bullet connectors on the ends. The lanyard switch leads
and newer Force outboards 40 HP and higher utilizing Mercury style cables (with also have bullet connectors on the ends.
power trim). This control is designed for MIE and MCM engines.
The control uses GEN II T/S cables. The control must use GEN II T/S cables.
When used with Model Year 2005 8/9.9 FourStroke engines GEN II/SAE T/S cable Mercury Branded
must be used.
PANEL MOUNT REMOTE CONTROL-GEN II- LOCK BAR
Mercury Branded
MPC PANEL-GEN II- FINGER RELEASE-MCM/MIE

883710A01 132.34
The Panel Mount control features a chrome handle and is designed for
8M0011214 142.15 outboard engines w/o power trim. All installations require a separate
Ignition/Choke assembly and T/S cables to complete the installation. The
The Panel Mount control features a black handle and comes with a 4ft. power trim adapter harness is included to convert 3 pin molex connector to the
(1.22 m) trim harness with the 3 pin molex connector. All installations traditional 3 blade Mercury connector. The neutral safety switch leads are 6.5 ft.
require a separate Ignition/Choke assembly and T/S cables to complete (1.98 m) long and have bullet connectors on the ends. The lanyard switch leads
the installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and have a also have bullet connectors on the ends.
bullet connector on the ends. The lanyard switch leads also have bullet style Used on Outboard engines only ‑ Non Trim versions.
connector ends. The control uses GEN II T/S cables.
Fits all current MCM (with integral trim) utilizing Mercury style cables (with power When used with Model Year 2005 8/9.9 FourStroke engines GEN II/SAE T/S
trim). cables must be used.
Mercury Branded Mercury Branded
MPC PANEL-GEN II- FINGER RELEASE-MCM (CHROME) 883710A02 141.11
The Panel Mount control features a chrome handle and comes with a 4ft.
(1.22 m) trim harness with the 3 pin molex connector. All installations
require a separate Ignition/Choke assembly and T/S cables to complete
the installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and have a
bullet connector on the ends. The lanyard switch leads also have bullet style
connector ends.
The control fits all current Mercury/Mariner outboards (with integral trim) and 1993
and newer Force outboards 40 HP and higher utilizing Mercury style cables (with
power trim).
The control uses GEN II T/S cables.
When used with Model Year 2005 8/9.9 FourStroke engines GEN II/SAE T/S
cables must be used.
Mercury Branded
8M0030551 143.19
The Panel Mount control features a chrome handle and comes with a 4ft.
(1.22 m) trim harness with the 4 pin molex connector. All installations
require a separate Ignition/Choke assembly and T/S cables to complete
the installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and have a
bullet connector on the ends. The lanyard switch leads also have bullet style
connector ends. MECHANICAL REMOTE CONTROLS
Fits all current MCM (with integral trim) utilizing Mercury style cables (with power
trim).
Mercury Branded

OEM Rigging & Accessories Guide & Price List 113
