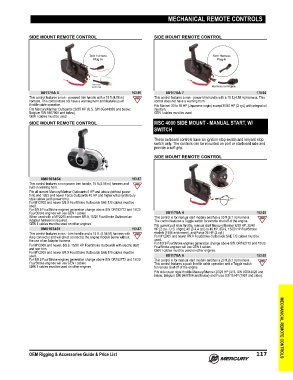

Page 130 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MECHANICAL REMOTE CONTROLS

SIDE MOUNT REMOTE CONTROL SIDE MOUNT REMOTE CONTROL

881170A 5 163.99 881170A 7 179.04
This control features a non ‑ powered trim handle with a 15 ft.(4.58 m) This control features a non ‑ power trim handle with a 15 ft.(4.58 m) harness. This
harness. This control does not have a warning horn and features push control does not have a warning horn.
throttle cable operation. Fits Mariner 30 to 55 HP (Japanese origin) except 30/40 HP (2 cyl.) with integral oil
Fits Mercury/Mariner Outboards 20/25 HP (U.S. S/N 0G044026 and below; injection.
Belgium S/N 9807908 and below). GEN I cables must be used.
GEN I cables must be used.
SIDE MOUNT REMOTE CONTROL MSC 4000 SIDE MOUNT - MANUAL START, W/
SWITCH

These outboard controls have an ignition stop switch and lanyard stop
switch only. The controls can be mounted on port or starboard side and
provide a soft grip.
SIDE MOUNT REMOTE CONTROL

8M0103454 193.87
This control features a non‑power trim handle, 15 ft.(4.58 m) harness and
built‑in warning horn.
Fits all current Mercury/Mariner Outboards 6 HP and above (without power
trim) and 1993 and newer Force Outboards 40 HP and higher utilizing Mercury
style cables (with power trim).
For MY2005 and newer 8/9.9 FourStroke Outboards SAE T/S cables must be
used.
For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20
FourStroke engines will use GEN I cables. 881170A 4 153.09
When used with a MY2005 and newer 8/9.9, 15/20 FourStroke Outboard an This control is for manual start models and has a 20 ft.(6.1 m) harness.
Adapter harness is required. The control features a Toggle switch for remote shut off of the engine.
GEN II cables must be used on other engines. Fits current pull style throttle, manual start Mercury/Mariner 6/25 HP, 30/40
8M0103451 193.87 HP (2 cyl.‑ U.S. origin), 40 (3 & 4 cyl.) to 45 HP, 8/9.9, 15/20 HP FourStroke
This control features a non ‑ trim handle and a 15 ft. (4.58 M) harness with models (1996 and newer), and Force 25 HP (3 cyl.)
Amp connector and will direct connect to the engine models below without For MY2005 and newer 8/9.9 FourStroke Outboards SAE T/S cables must be
the use of an Adapter harness. used.
For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20
For MY2005 and newer, 8/9.9, 15/20 HP FourStroke Outboards with electric start FourStroke engines will use GEN I cables.
and non‑trim. GEN I cables must be used on other engines.
For MY2005 and newer 8/9.9 FourStroke Outboards SAE T/S cables must be
used. 881170A 6 153.09
For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20 This control is for manual start models and has a 20 ft.(6.1 m) harness.
FourStroke engines will use GEN I cables. This control features a push throttle cable operation and a Toggle switch
GEN II cables must be used on other engines. for remote shut off of the engine.
Fits older push style throttle Mercury/Mariner 20/25 HP (U.S. S/N 0G044026 and
below; Belgium S/N 9807908 and below) and Force 9.9/15 HP (1997 and older).

OEM Rigging & Accessories Guide & Price List 117 MECHANICAL REMOTE CONTROLS
