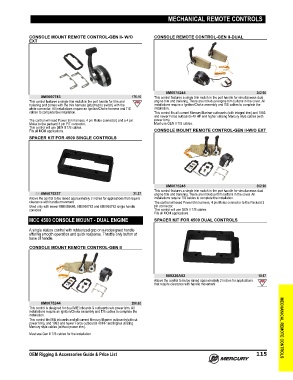

Page 128 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MECHANICAL REMOTE CONTROLS

CONSOLE MOUNT REMOTE CONTROL-GEN II- W/O CONSOLE REMOTE CONTROL-GEN II-DUAL
EXT

8M0075245 352.90
8M0060783 175.15 This control features a single trim switch in the port handle for simultaneous dual
This control features a single trim switch in the port handle for trim and engine trim and trailering. There are individual engine trim buttons in the cover. All
trailering and comes with the trim harness (attached to switch) with the installations require a Ignition/Choke assembly and T/S cables to complete the
white connector. All installations require an Ignition/Choke harness and T/S installation.
cables to complete the installation. This control fits all current Mercury/Mariner outboards (with integral trim) and 1993
and newer Force outboards 40 HP and higher utilizing Mercury style cables (with
The control will need Power trim harness, 4 pin Molex connector) and a 4 pin power trim).
Molex to the packard 3 pin P/T connector. Must use GEN II T/S cables.
This control will use GEN II T/S cables.
Fits all MCM applications. CONSOLE MOUNT REMOTE CONTROL-GEN II-W/O EXT
SPACER KIT FOR 4500 SINGLE CONTROLS

8M0075246 352.90
This control features a single trim switch in the port handle for simultaneous dual
98-8M0075237 21.37 engine trim and trailering. There are individual trim buttons in the cover. All
Allows the control to be raised approximately 2 inches for applications that require installations require T/S cables to complete the installation.
clearance with handle movement The control will need Power trim harness, 4 pin Molex connector to the Packard 3
Used only with newer 8M0059686, 8M0060783 and 8M0060782 single handle pin connector.
consoles This control will use GEN II T/S cables.
Fits all MCM applications.
MCC 4500 CONSOLE MOUNT - DUAL ENGINE SPACER KIT FOR 4500 DUAL CONTROLS

A single station control with rubberized grip on a redesigned handle
offering smooth operation and quick response. Throttle only button at
base of handle.

CONSOLE MOUNT REMOTE CONTROL-GEN II

889220A02 19.67
Allows the control to be be raised approximately 2 inches for applications
that require clearance with handle movement

8M0075244 290.62
This control is designed for dual MIE inboards & outboards w/o power trim. All
installations require an Ignition/Choke assembly and T/S cables to complete the
installation.
This control fits MIE inboards and all current Mercury/Mariner outboards(without
power trim), and 1993 and newer Force outboards 40 HP and higher utilizing
Mercury style cables (without power trim). MECHANICAL REMOTE CONTROLS
Must use Gen II T/S cables for the installation.

OEM Rigging & Accessories Guide & Price List 115
